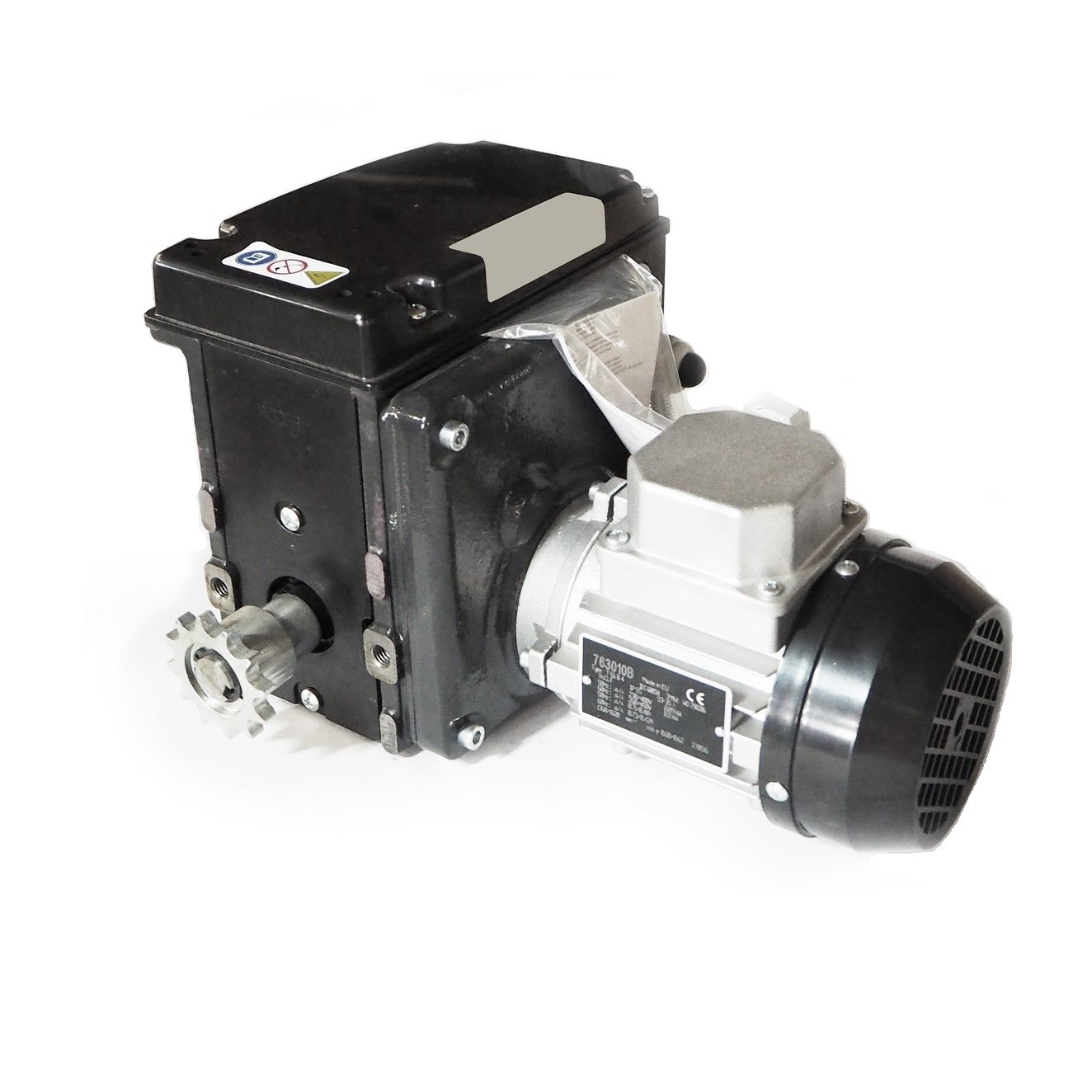

Motor gearbox RW45-5-09\115\1\60\P\CU\97
Save as PDF
Product number: 32015220
This item cannot be ordered directly because it is not in stock or the shipping costs have to be determined individually. However, we will be happy to provide you with an offer for this.
Product information "Motor gearbox RW45-5-09\115\1\60\P\CU\97"
- Application: Drive unit for ventilation and screen systems in greenhouses or barns
- Voltage: 100–115 V, 1~, 60 Hz
- Speed: 5 rpm
- Limit switch: Integrated linear limit switch system with a 97-turn operating range
- Features:
- Self-locking worm gear for secure shaft position at standstill
- Quiet operation due to optimized gear combinations
- Maintenance-free and compact design
- Optional RPU PositioningUnit or potentiometer feedback
- Graphite-grey powder coating
The RW45-5-09\115\1\60\P\CU\97 is a reliable gear motor for greenhouse systems operating on 115 V. It offers quiet, self-locking performance and precise limit switch control, with optional feedback integration for climate automation.
Customers who buyed this item also buyed:

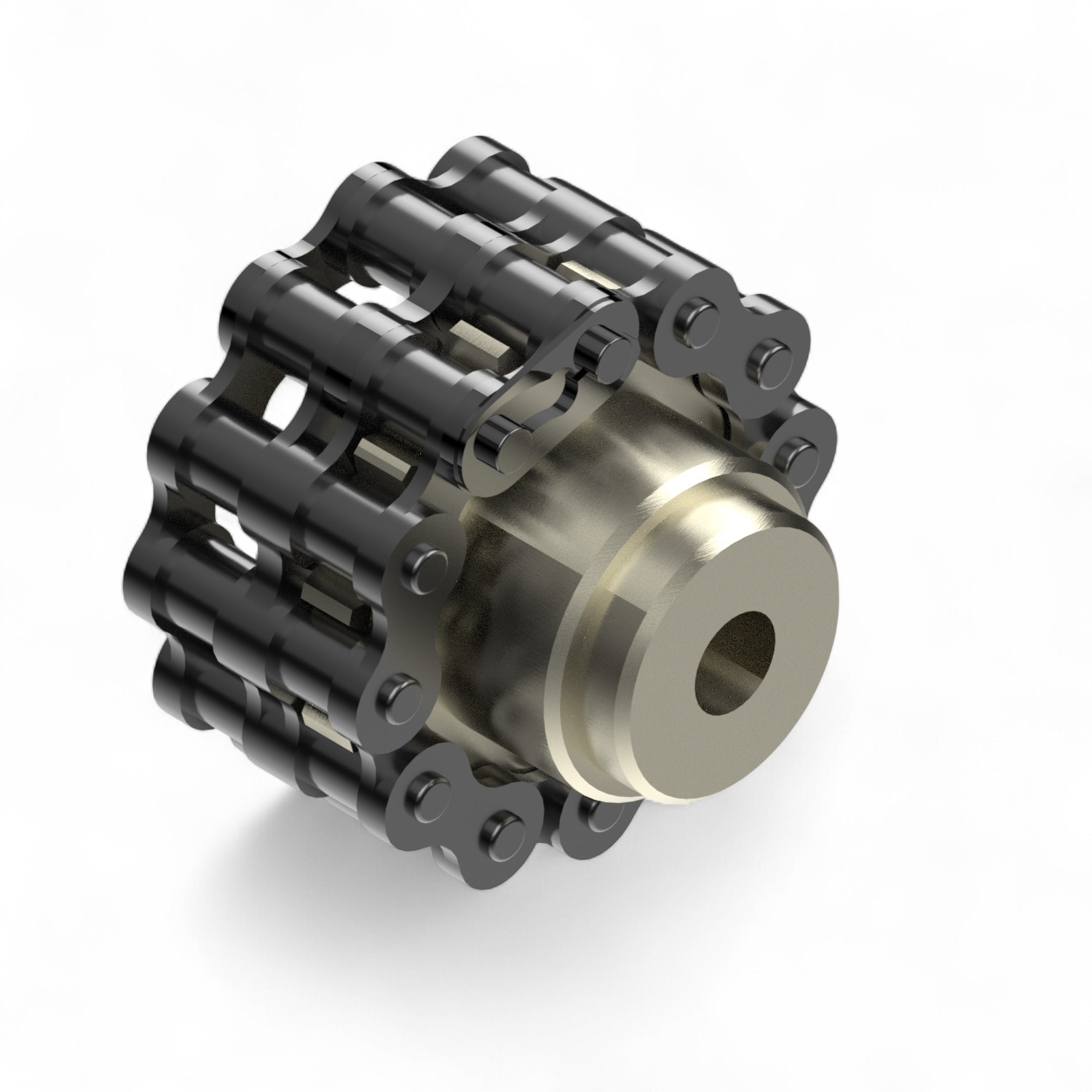

Chain coupling for RW 45 - tube 1"
Version: Tube 1"
Application: Connects the chain wheel of the RW 45 gearbox to the drive shaft Material: Galvanized steel Design: Welded to the shaft - duplex chain for inline movement Benefit: Increases flexibility of the drive system under dynamic loads and structural movement Ridder Article No.: 590000 The Chain Coupling for RW 45 – Tube Ø 1″ connects the gearbox chain wheel to the drive shaft and enhances system flexibility. The duplex chain allows for inline movement, reducing stress during dynamic operation and structural shifts in greenhouse installations.
0,00 €*
Chain Coupling for RW 45 – Tube Ø 2
Version: Tube Ø 2 "
Application: Connects the chain wheel of the RW 45 gearbox to the drive shaft Material: Galvanized steel Design: Welded to the shaft - duplex chain for inline movement Benefit: Increases flexibility of the drive system under dynamic loads and structural movement Ridder Article No.: 590099 The Chain Coupling for RW 45 – Tube Ø 2″ is the largest of the three variants and is used in heavy-duty greenhouse installations. It ensures smooth torque transfer and compensates for misalignment or movement in large-scale structures.
0,00 €*

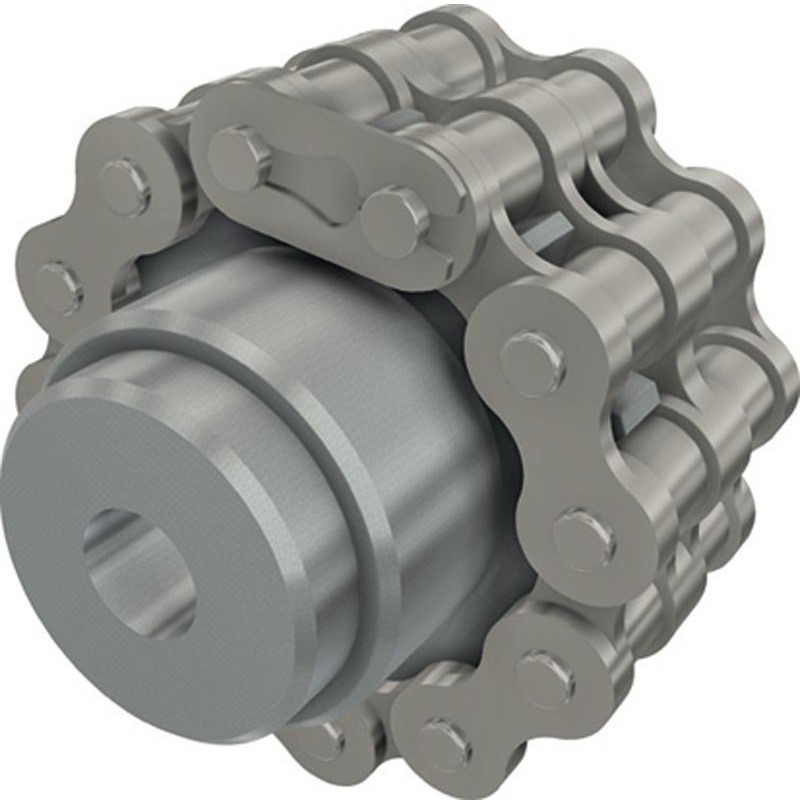

Chain coupling for RW 45 - tube
Version: Tube Ø 5/4 "
Application: Connects the chain wheel of the RW 45 gearbox to the drive shaft Material: Galvanized steel Design: Welded to the shaft - duplex chain for inline movement Benefit: Increases flexibility of the drive system under dynamic loads and structural movement Ridder Article No.: 590003 The Chain Coupling for RW 45 – Tube Ø 5/4″ is designed for slightly larger shaft diameters and offers the same flexibility and durability as the 1″ version. It is ideal for robust greenhouse drive systems requiring high torque transmission.
0,00 €*

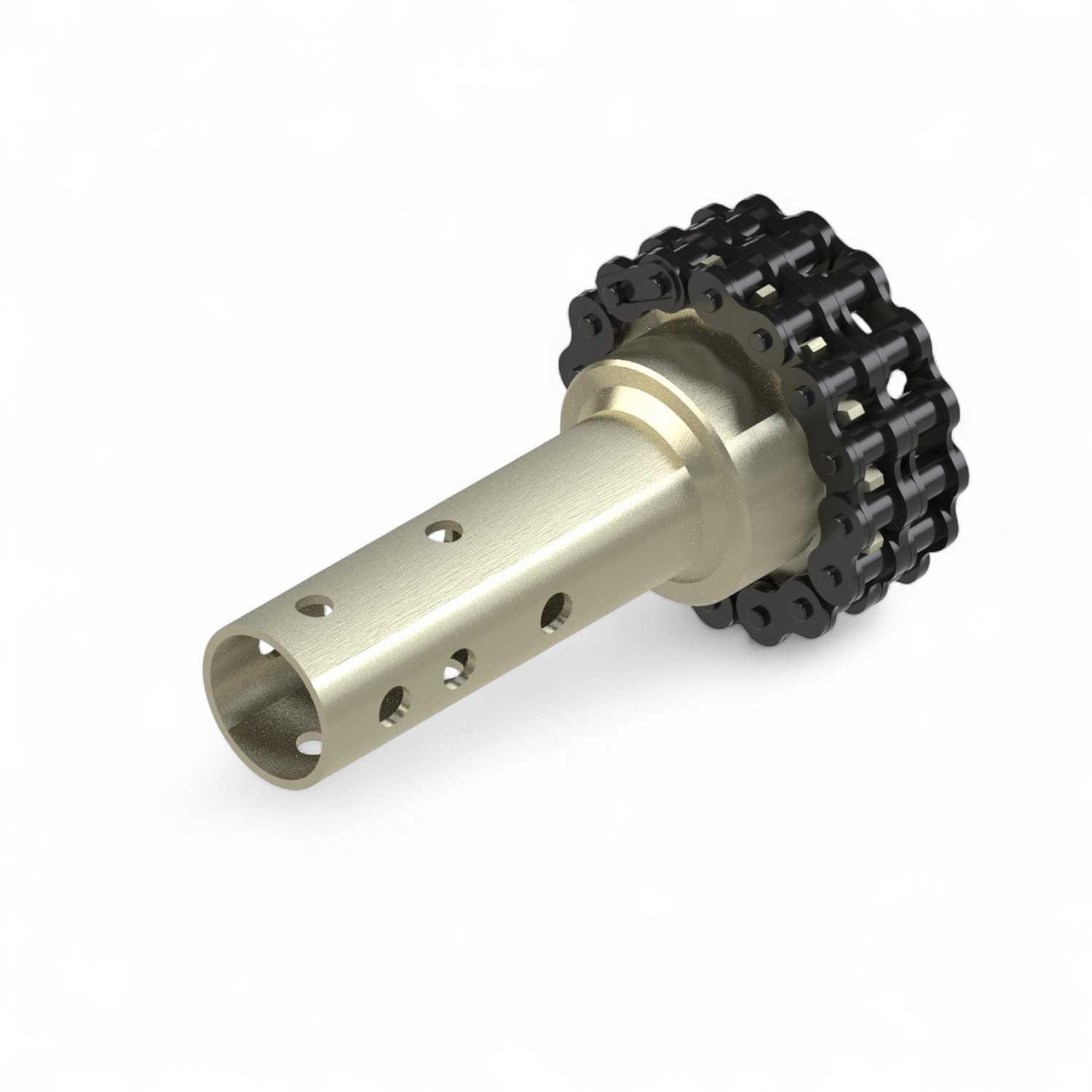

Bolted chain coupling for RW45 - tube
Application: Connects the chain wheel of RW45 gear motors to the drive shaft Tube size: 1″ Material: Galvanized steel Mounting: Bolted design with pre-punched receptacle for easy installation Features: Duplex chain allows axial movement of the shaft for greater flexibility The Bolted chain coupling for RW45 – 1″ tube provides a flexible and secure connection between the gear motor and the drive shaft. Its bolted design simplifies installation compared to welding, and the duplex chain compensates for misalignment caused by structural movement.
0,00 €*
Bolted chain coupling for RW45 - tube
Application: Connects the chain wheel of RW45 gear motors to the drive shaft Tube size: 1¼″ Material: Galvanized steel Mounting: Bolted design with pre-punched receptacle for easy installation Features: Duplex chain allows axial movement of the shaft for greater flexibility The Bolted chain coupling for RW45 – 1¼″ tube is used to connect Ridder RW45 gear motors to larger drive shafts. It offers the same easy installation and flexibility as the 1″ version, with a larger bore for 1¼″ tubing. Ideal for dynamic greenhouse environments.
0,00 €*
