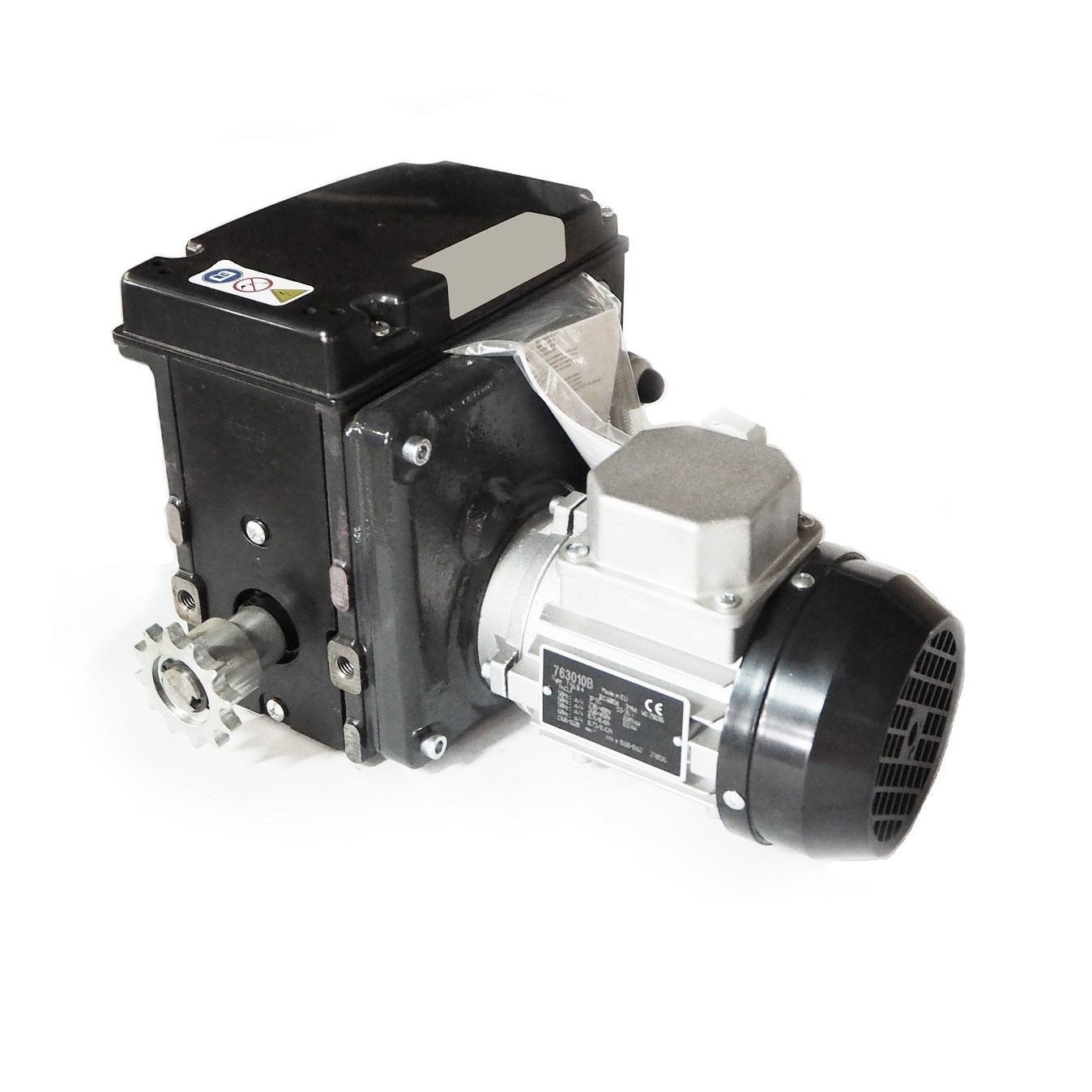

Motor gearbox Ridder RW 45-1-09\400\3\97
456,65 €*
not in stock
request possible - price changes possible
Product number: 32035229
This item cannot be ordered directly because it is not in stock or the shipping costs have to be determined individually. However, we will be happy to provide you with an offer for this.
Product information "Motor gearbox Ridder RW 45-1-09\400\3\97"
- Application: Drive unit for horizontal shading and ventilation systems
- Voltage: 400 V, 3~, 50 Hz
- Switching range: Integrated linear limit switch system with a switching range of 86 turns
- Limit switch: Integrated linear limit switch system
- Features:
- Self-locking worm gear for secure shaft position at standstill
- Quiet and compact design
- Delivered with pre-installed chain wheel for chain coupling
- Optional: RPU PositioningUnit or potentiometer feedback
- Ridder Article No.: 502000
The RW 45-1-09 / 400 V is a three-phase gear motor for greenhouse shading and ventilation. It combines quiet operation with robust performance and is equipped with a linear limit switch system for precise control. The pre-installed chain wheel simplifies integration into existing systems.
