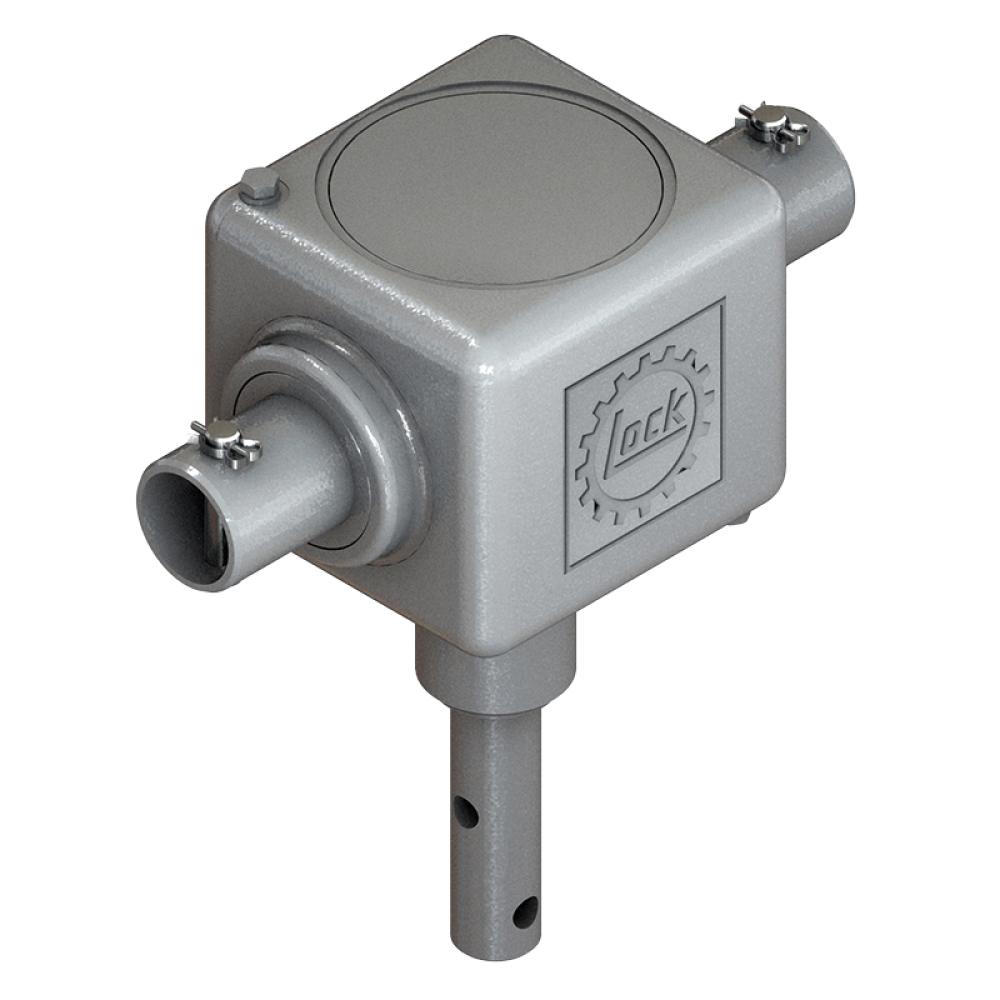

Lock KGO 32.1115 150Nm - 1:1 - We 73

• Application: 90° bevel gearbox for actuating ventilation shafts in greenhouses, halls, and barns
• Material: Cast housing with steel bevel and spur gears
• Gear ratio: 1:1
• Shaft A: We 07 (Ø 26 mm) for 1″ pipe
• Shaft B: Hollow shaft (Ø 35 mm) for 1″ pipe
• Max input speed: 40 rpm

The Lock KGO 32.1115 is a robust 90° bevel gearbox used to redirect motion in greenhouse ventilation systems. It ensures reliable torque transmission with minimal backlash. The sealed housing and steel gear components guarantee long service life and resistance to harsh conditions.
