Cable track
The fitting endclip for the 10 x 10 energy chain. The endclip comes with holes for the attachement to the roll up bracket. Material: Plastic
Mounting bracket for tube motor 10 mm
Application: Mounting bracket for attaching tube motors with 10×10 mm square pin Material: Galvanized steel Mounting: Can be screwed onto the motor guide on either side Included: Supplied with matching screws Compatibility: Suitable for RB and FRM tube motors with 10 mm drive pin The Mounting bracket for tube motor – 10 mm is used to securely attach the motor to the motor guide. It accepts the 10×10 mm square pin of the motor and can be mounted on the left or right side. Delivered with screws for quick installation.
Guiding unit for tube motor RB40 /50/ TGU
Application: Standard motor guide for RB40, RB50, and FRM50 tube motors Material: Galvanized steel Mounting: Accepts 10×10 mm square pin - includes mounting bracket Function: Moves the motor along the guide rail Packaging unit: 50 pieces The Guiding unit for tube motor RB40 / RB50 / TGU is a robust and reliable solution for guiding tube motors in greenhouse systems. It ensures smooth movement along the guide rail and is compatible with 10 mm square motor pins.
Guide rail for tube motor
The guide profile for tubular motors in conjunction with our roller carriage ensures, that your tubular motor is guided straight in roll up systems.
FRM50-tube motor-50-12-230
Application: Horizontal shading systems in greenhouses Voltage: 230 V (120 V version also available) Torque: 50 Nm Speed: 12 rpm Mounting: Delivered with 10×10 mm square shaft adapter Tube compatibility: For 50 mm and 63 mm roll-up tubes Limit switches: Externally adjustable with Allen key The FRM50 tube motor 50-12-230 is a durable and robust drive unit for greenhouse shading systems. It offers easy installation and adjustment, and is compatible with standard motor guides and brackets.
Roll up bracket for energy chain
Application: Mounting bracket for attaching energy chains to motor guides Material: Galvanized steel Mounting: Pre-punched holes for flexible installation directions Compatibility: Suitable for all standard 10×10 mm energy chains The Roll-up bracket for energy chain allows secure attachment of energy chains to the motor guide. It features pre-punched mounting holes for flexible positioning and is made of corrosion-resistant galvanized steel for long-term durability.
Tube motor RB50E+3.5 - 230\50\VK10\B50\L772
Application: Maintenance-free drive for roll screen systems in greenhouses and livestock buildings Material: Built into an aluminum tube with 50 mm diameter and 1.5 mm wall thickness Motor: Low-noise, single-phase, 2-pole asynchronous electric motor Limit switch: Precise electronic limit switch system with pulse counter (38 revolutions) Protection class: IP55 – high water resistance Torque: 50 Nm at 50 Hz Speed: 3.5 rpm at 50 Hz Ridder Article No.: 550032 The RB50E+ - 3.5-230/50/VK10/B50/L772 tubular motor is a powerful and maintenance-free drive unit for roll screen systems in greenhouses and livestock buildings. Thanks to its quiet operation and high water resistance, it is ideal for demanding environments. The integrated electronic limit switch system with pulse counter ensures precise control and protects the motor from overload. The IP55 protection rating allows reliable operation even in humid conditions. The motor is designed for intermittent operation and provides reliable braking performance, even under low voltage conditions.
Endguide with bearing for tube motor
The endguide with bearing provides roll up tubes guiding at the side, that faces the tube motor. Therefore it is installed into the roll up tube. Material: aluminium
Tube motor Ridder RB120-11-44\230\1\50\36 - 230V, 120 Nm
Application: For sidewall and dual roll-up screen systems in greenhouses Voltage: 230 V / 50 Hz (also available for 60 Hz) Torque: 120 Nm Speed: 11 rpm (50 Hz) / 13 rpm (60 Hz) Limit switches: Mechanical, adjustable (38 turns) Tube compatibility: For 63 mm roll-up tubes Protection class: IP44 Ridder Article No.: 550180 The RB120-11-44 tube motor is a high-torque, maintenance-free drive unit for large greenhouse shading systems. It features a sealed housing, integrated brake, and a robust planetary gearbox for long-lasting performance.
Tube motor RB50-3.5-13\230\1\50/60\38\16 - 230 V
Application: For horizontal shading systems in greenhouses Voltage: 230 V, 1-phase Torque: 3.5 Nm Speed: 13 rpm Limit switches: Mechanical, adjustable Compatibility: For 50 mm drive tubes Ridder Article No.: 550025 The RB50-3.5-13 tube motor is a compact and efficient drive for greenhouse shading systems. It features mechanical limit switches and is compatible with 50 mm roll-up tubes. Ideal for small to mid-sized installations.
Mounting bracket for tube motor 16 mm
Application: Mounting bracket for attaching tube motors with 16×16 mm square pin Material: Galvanized steel Mounting: Can be screwed onto the motor guide on either side Included: Supplied with matching screws Compatibility: Suitable for RB and FRM tube motors with 16 mm drive pin The Mounting bracket for tube motor – 16 mm is used to securely attach the motor to the motor guide. It accepts the 16×16 mm square pin of the motor and can be mounted on the left or right side. Delivered with screws for quick installation.
RPU 24V\4-20mA\V2\SET
Application: Digital positioning sensor for Ridder RW gear motors Signal output: 4–20 mA (also configurable to 0–5 V or 0–10 V) Technology: Contactless Hall sensor with magnetic axis Accuracy: ±0.04% of the learned measuring range Compatibility: All RW motors with RSU limit switch system Features: Reverse-polarity protection, LED status display, reference input Ridder Article No.: 502687 The RPU 24V / 4–20 mA / V3 is a high-precision digital positioning unit for Ridder RW motors. It continuously reports the motor position to a climate controller and is ideal for ventilation, shading, and lifting systems. Its contactless design ensures maintenance-free operation and long-term reliability.
Motor gearbox RW 245 400-460Volt/3-Phase/3 rpm
Application: Maintenance-free drive for ventilation, shading, and lifting systems in greenhouses and livestock buildings Voltage: 400–450 V, 3-phase Speed: 5 rpm Protection class: IP55 – dust and water resistant End switch: Patented linear limit switch system with high switching accuracy Temperature range: 0–60 °C Features: Quiet operation, self-locking worm gear, optional RPU PositioningUnit or potentiometer kit Ridder Article No.: 502320 The RW245-37 motor gearbox is a rugged, low-maintenance drive unit designed for greenhouse automation. Its precise limit switch system and quiet, self-locking transmission ensure reliable performance in demanding environments.
Guiding unit for tube motor VK16\L170
Application: Motor guide for RB120-11/13 tube motors in vertical guide rails Material: Galvanized steel Mounting: Accepts 16×16 mm square pin - secured with cotter pin Function: Absorbs axial and rotational forces of the motor Ridder Article No.: 550505 The Guiding unit VK16 / L170 is designed for RB120 tube motors and ensures stable and precise movement within the guide rail. It is built to absorb both axial and rotational forces and is secured with a 16 mm square pin and cotter pin.
Handle (200 mm) for manual gear R8 and R16
Application: Manual operation of hand drives in shading and ventilation systems Material: Robust steel for high stability and durability Function: Ideal for low-mounted or inline hand drives Length: 200 mm The Hand Crank 200 mm for Manual Drive is a compact and reliable tool for manually operating hand drives in greenhouse shading and ventilation systems. It is especially suitable for low-mounted or inline installations. Its solid steel construction ensures long-lasting performance, while the compact design allows for precise and comfortable control of the drive mechanism.
Lock EWA 12.2505 / 250 Nm / 400 V - 4,4 rpm - We 06
Application: Drive unit for horizontal shading systems in greenhouses Torque: 250 Nm Voltage: 400 V, 3~, 50 Hz Speed: 4.4 rpm Power: 0.30 kW Current: 1.10 A Shaft: Type 06 Limit switch: Precision gear limit switch END 20 for 580 shaft revolutions Features: Extremely quiet, self-locking double worm gear Maintenance-free and long-lasting Universal mounting: rear (standard) or optionally left-side (symmetrical) Wiring via 7-core cable The Lock EWA 12.2505 is a powerful gear motor designed for professional use in greenhouse shading systems. Its self-locking double worm gear ensures quiet and reliable movement of the screens. With flexible mounting options and an integrated precision limit switch, it offers versatile and user-friendly installation.
Manual Gear R9E-TGU for small application - with locking device - 1:8
Application: Manual operation of shading and ventilation systems Material: Durable steel construction for high stability and longevity Gear ratio: 1:8 – enables precise control with minimal effort Installation: Directly mountable to TGU telescopic shafts or drive shafts The Manual Drive R9E-TGU for Small Applications offers a dependable solution for manually controlling greenhouse shading and ventilation systems. Its robust steel design ensures high stability and long service life. With a gear ratio of 1:8, it provides smooth and efficient operation. The drive connects directly to TGU telescopic or standard shafts for straightforward setup.
Adjusting switch RB50E+ / RB120E+ - Ridder Art. Nr.:772001
Application: Adjustment tool for setting end switches in RB50E+ and RB120E+ tube motors Compatibility: For Ridder tube motors with electronic limit switch systems Function: Enables precise configuration of motor stop positions Use case: Required during installation or recalibration of motor travel limits Ridder Art. Nr.:772001 The Adjusting switch RB50E+ / RB120E+ is used to configure the electronic end switch system in Ridder tube motors. It ensures accurate stop positions and protects the motor from overrun or overload.
Manual Gear R17E-TGU for small application - with locking device - 1:16
Application: Manual drive for small shading and ventilation systems Material: Sturdy construction with integrated coupling Gear ratio: 1:16 Function: Directly mountable to TGU telescopic shafts or drive shafts Feature: Supplied with matching hand crank - optional extended crank or hook for elevated drives The Manual Drive R17E-TGU is ideal for operating small greenhouse shading and ventilation systems. It features an integrated coupling for direct connection to TGU telescopic or standard drive shafts. Delivered with a standard hand crank, it can also be equipped with an extended crank or hook for convenient operation of high-mounted drives. When combined with a chain wheel, even elevated installations can be easily controlled.
Manual Gear R41-1P TGU for small application - with locking device - 1:40
Application: Manual operation of shading and ventilation systems Material: Durable steel construction for high stability and longevity Gear ratio: 1:40 – enables precise control with minimal effort Installation: Directly mountable to TGU telescopic shafts or drive shafts The Manual Drive R41-1P/TGU for Small Applications is a reliable solution for manually operating greenhouse shading and ventilation systems. Its sturdy steel build ensures long-term durability and stable performance. With a gear ratio of 1:40, it allows precise control with minimal force. The unit mounts directly to TGU telescopic or standard drive shafts for easy installation.
Motor gearbox Ridder RW 241-09/400/3/86//IP55
Application: Drive unit for ventilation, screen, and lifting systems in greenhouses and barns Voltage: 400 V, 3~, 50 Hz Switching range: Integrated linear limit switch system with a switching range of 86 turns Protection class: IP55 – dust and water jet resistant Limit switch: Patented linear limit switch system with high switching precision Features: Self-locking worm gear for secure shaft position at standstill Maintenance-free and compact design Suitable for ambient temperatures from 0–60 °C Optional: RPU PositioningUnit or potentiometer feedback Ridder Article No.: 537200 The RW 241-09 / 400 V is a compact, maintenance-free gear motor for greenhouse ventilation, shading, and lifting systems. Its IP55 protection and self-locking worm gear ensure safe operation even in demanding environments. The integrated linear limit switch system allows precise control over up to 86 shaft revolutions.
Power drive Lock EWA 10.0505 50 Nm 5,6 U/min - Welle 06 400V - 12210.0505.06
Application: Drive unit for horizontal shading systems in greenhouses Torque: 50 Nm Voltage: 400 V, 3~, 50 Hz Speed: 5.6 revolutions per minute Power: 0.11 kW Current: 0.45 A Shaft: Type 06 Limit switch: Precision gear limit switch END 20 for 580 shaft revolutions Features: Extremely quiet, self-locking double worm gear Maintenance-free and long-lasting Universal mounting: rear (standard) or optionally left-side (symmetrical) Wiring via 7-core cable The Lock EWA 10.0505 is a compact and efficient gear motor for horizontal shading systems. With 50 Nm torque and a quiet, self-locking double worm gear, it ensures precise and reliable screen movement. The integrated limit switch and flexible mounting options make it ideal for small to medium greenhouse installations.
Lock EWA 12.2505 / 250 Nm / 400 V - 4,4 rpm - We 66
Application: Drive unit for horizontal shading systems in greenhouses Torque: 250 Nm Voltage: 400 V, 3~, 50 Hz Speed: 4.4 revolutions per minute Power: 0.30 kW Current: 1.10 A Shaft: Type 66 (hexagonal) Limit switch: Precision gear limit switch END 20 for 580 shaft revolutions Features: Extremely quiet, self-locking double worm gear Maintenance-free and long-lasting Universal mounting: rear (standard) or optionally left-side (symmetrical) Wiring via 7-core cable The Lock EWA 12.2505 is a powerful gear motor specifically designed for horizontal shading systems in greenhouses. With 250 Nm torque and a speed of 4.4 rpm, it ensures precise and reliable control of screen movement. Its extremely quiet, self-locking double worm gear offers long service life without maintenance. The integrated precision gear limit switch END 20 enables accurate control with up to 580 shaft revolutions. Thanks to universal mounting options, the motor can be installed at the rear or optionally on the left side, making it adaptable to various system configurations.

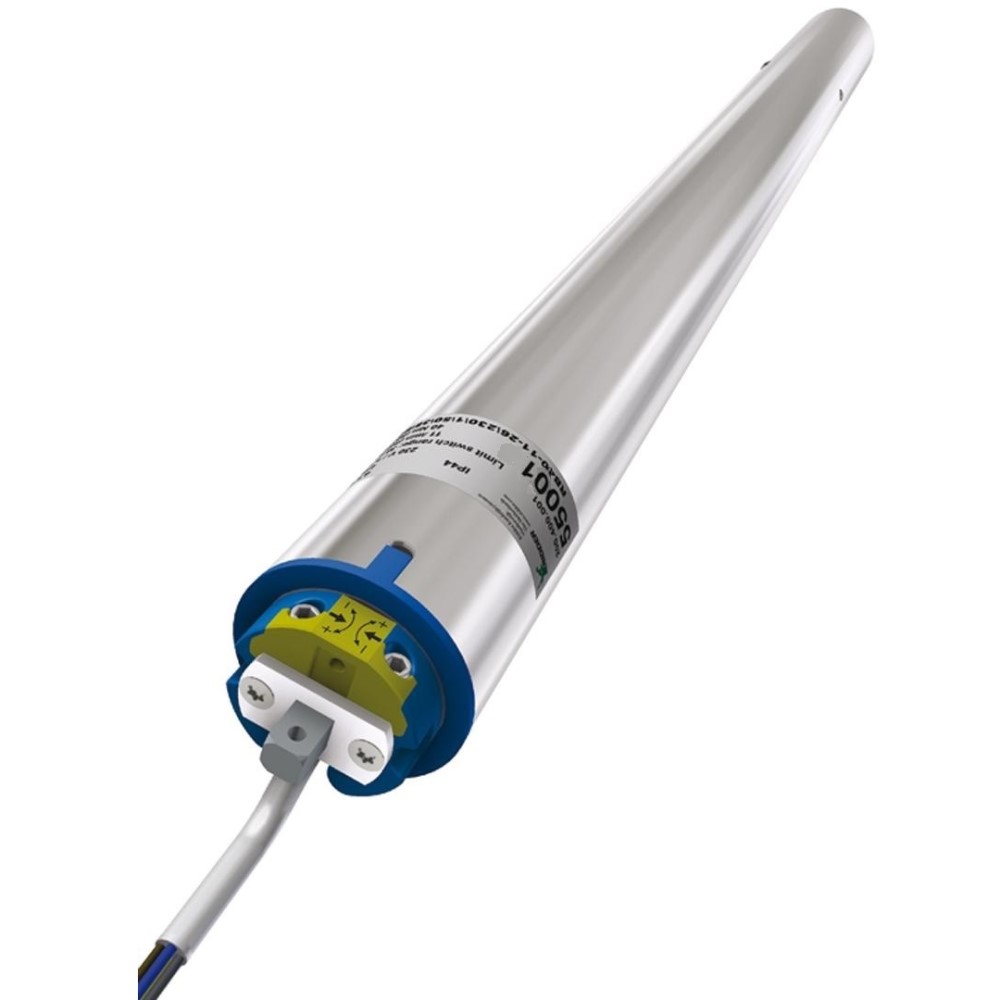

Tube motor RB40-11-26\230\1\50\38\16 - 230V
Application: Drive unit for sidewall and twin-roll screen systems in greenhouses (not suitable for roof roll screens) Torque: 40 Nm Speed: 11 rpm Voltage: 230 V, single-phase, 50 Hz Power consumption: 1.1 A Tube diameter: 50 mm aluminum sleeve (standard) Limit switch: Mechanical, precisely adjustable over 38 revolutions Protection class: IP44 – sealed against water ingress from the roll tube Ridder Article No.: 550018 Special features: Maintenance-free tubular motor with integrated planetary gear and motor brake Thermal protection prevents overheating damage Virtually silent operation Suitable for intermittent operation (S3-6%, 4 min duty cycle) The RB40-11 tubular motor is a compact and powerful drive unit for roll screen systems in glass and film greenhouses. Thanks to its precise limit switch, robust construction, and quiet performance, it is ideal for medium-duty applications. The integrated 50 mm aluminum sleeve allows for space-saving installation, while the IP44 protection rating prevents moisture ingress—ensuring long-lasting and reliable operation.
