cable pulley 62.52.6 - ball bearing

Cable pulley made of high impact resistant plastic with a diameter of 57 mm for various systems with cable drive. The pulley can also be used for other purposes such as: construction and maintenance of fitness equipment, stage construction and media technique, construction of garage doors. Diameter 57 mmDustproof ball-bearing For able and wire with a maximum diameter of 4 mmComaptible with 6 mm bolts

Cable pulley 100 for wires until 20 mm

Thanks to two ball bearings, the 100 mm pulley is guided particularly securely on the axle and has a high level of stability under shear loads.The assembly is ideally done with the enclosed spacers. To avoid damaging the bearing, a stop nut should be used and the screw should not be tightened too much during assembly.Impact resistant pulleyTwo ball bearings with enclosed spacersLoad capacity: up to 200 kgMade in GermanyOuter diameter: 100 mmcompatible with 10 mm boltTotal width: 35 mmRope diameter: up to Ø 20 mm

Cable pulley 100, double ball bearing for wires until 9 mm

Thanks to two ball bearings, the 100 mm pulley is guided particularly securely on the axle and has a high level of stability under shear loads.The integrated spacers make it particularly easy to mount the pulley. No spacers or washers are needed.Impact resistant pulleyTwo ball bearings with integrated spacersLoad capacity: up to 350 kgMade in GermanyOuter diameter: 100 mmcompatible with 10 mm boltTotal width: 20 mmRope diameter: up to Ø 9 mm

Cable pulley 52/8 - Ball bearing or Plain bearing

Schlagfeste Kunststoff-Seilrolle; Durchmesser 52 mm Maximale Traglast: 150 Kg eingepresste Gleitlager sorgen für eine stabilen Lauf Für Seildurchmesser bis 8 mm Made in Germany

Cable pulley 90 with universal clamp 50.50

This pulley can be mounted on square tubes in the shading system. Its axle position can be adjusted to one of three different heights using the three holes in the steel bracket.The 90 mm UF pulley is pre-mounted in such a way that it can be used for both under and front mounting.The 90 mm H pulley is pre-mounted in such a way that it can be used for rear mounting. The pulley can be used for cables with a diameter up to 8 mm Suits the following square tubes: 50 x 50, 50 x 55, 50 x 30, 50 x 25, 50 x 20 mm Material: Pulley: high impact resistant plasticBracket: Galvanized steel

Cable Pulley 90/8 with clamp - double ball bearing

Thanks to two ball bearings, the 90 mm pulley is guided particularly securely on the axle and has a high level of stability under shear loads.The galvanised steel bracket can be attached to your construction with an M8 screw. The retaining bracket can also be detached from the pulley to make installation as easy as possible, even in installation situations that are difficult to access. Impact resistant pulleyGalvanised steel bracketTwo ball bearingsLoad capacity: up to 350 kgMade in GermanyOuter diameter: 90 mmTotal height: 115,75 mmTotal width: 41 mmRope diameter: up to Ø 8 mmFastening with M8 srew / bolt

Cable pulley with clamp 2.2

This 90 mm pulley with clamp can be attached to square tubes. Due to cable tension a centred mounting position is ensured.The pulley can be used for cables with a diameter up to 3 mm. Suits the following square tubes: 50 x 50 mmMaterial:Pulley: high impact resistant plasticClamp: Galvanized steel For screwing you will need:- M 6 x 65 bolt- M 6 nut

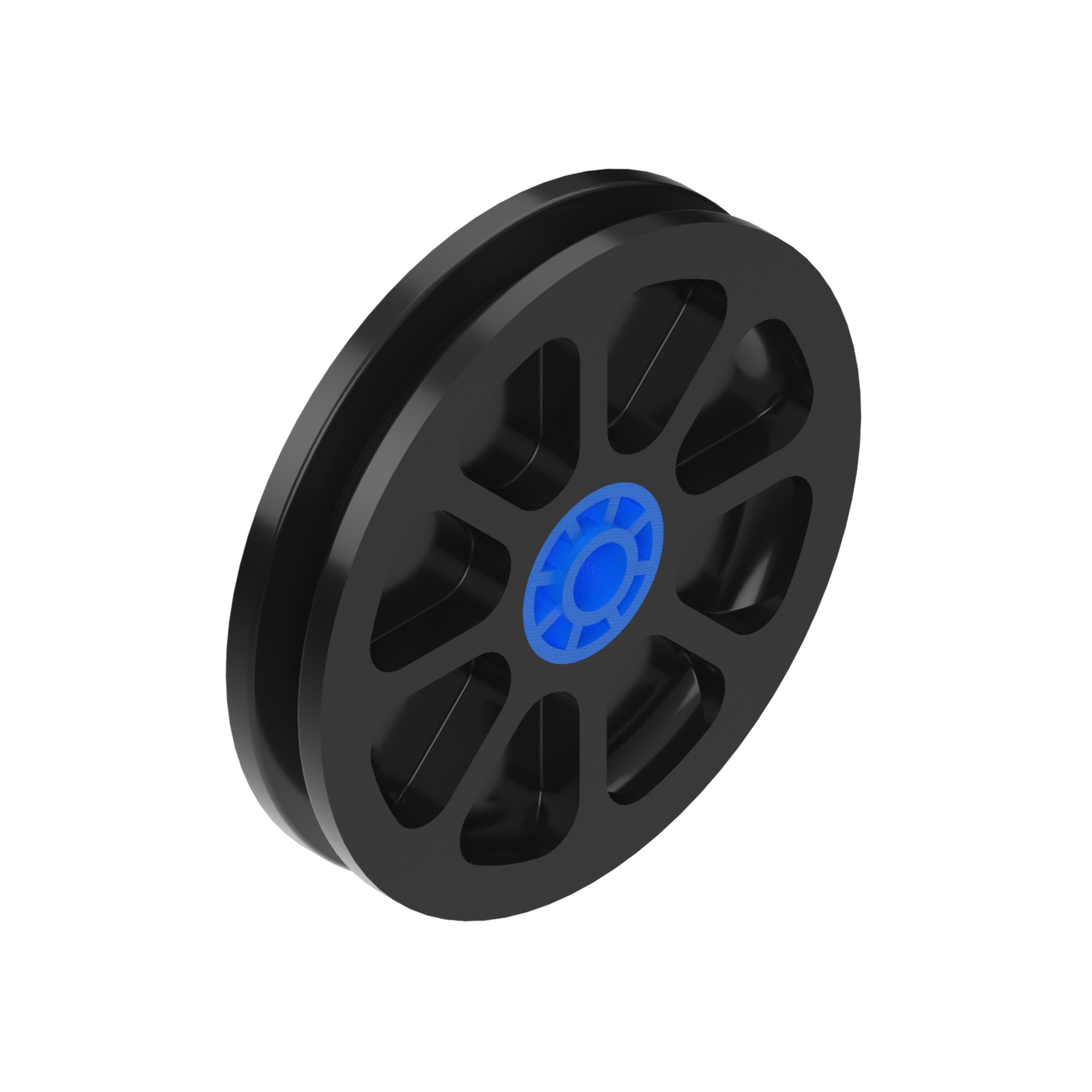

Cable pulley 100, double ball bearing

All-purpose 100 mm pulley made of high impact resistant plastic. The pulley can be used in shading systems as well as in several other application areas. Some of them are: construction and maintenance of fitness equipment, stage construction and media technique, construction of garage doors. Diameter 100 mmMaximum loading capacity: 170 Kg Double ball bearing with spacer ring For cord and wire with a maximum diameter of 4 mmCompatible with 10 mm bolts

Cable pulley 100 with universal clamp 50.50

The 100 mm pulley can be mounted on the rear side of square tubes in the shading system.Its axle position can be adjusted to one of three different heights using the three holes in the steel bracket.The 100 mm UF pulley is pre-mounted in such a way that it can be used for both under and front mounting.The 100 mm H pulley is pre-mounted for rear mounting.It is possible to re-mount the pulley afterwards.Suitable for wire ropes up to 3 mm in diameter. Fits the following square tubes:50 x 50, 50 x 55, 50 x 30, 50 x 25, 50 x 20.Material: Pulley: impact-resistant plasticBracket: galvanized steel

Cable Pulley 75/8 with clamp - double ball bearing

Thanks to two ball bearings, the 75 mm pulley is guided particularly securely on the axle and has a high level of stability under shear loads.The galvanised steel bracket can be attached to your construction with an M8 screw. The retaining bracket can also be detached from the pulley to make installation as easy as possible, even in installation situations that are difficult to access. Impact resistant pulleyGalvanised steel bracketTwo ball bearingsLoad capacity: up to 350 kgMade in GermanyOuter diameter: 75 mmTotal height: 100,75 mmTotal width: 20 mmRope diameter: up to Ø 8 mmFastening with M8 screw / bolt

Cable Pulley Ø 52 mm / Ø 4 mm - with steel bracket

Cable pulley 100 with clamp - Wires until 9 mm

Durch zwei verbaute Kugellager ist die 100 mm Umlenkrolle besonders sicher auf der Achse geführt und hat eine hohe Stabilität bei Scherlasten.Der Haltebügel aus verzinktem Stahl lässt sich mit einer M8- Schraube an Ihrer Konstruktion befestigen. Der Haltebügel lässt sich auch von der Umlenkrolle lösen um auch in schwer zugänglichen Einbausituationen eine möglichst einfache Montage zu ermöglichen. Schlagfeste UmlenkrolleHaltebügel aus verzinktem Stahlzwei KugellagerTraglast: bis zu 350 kgMade in GermanyAußendurchmesser: 100 mmGesamthöhe: 125,75 mmGesamtbreite: 20 mmSeildurchmesser: bis Ø 9 mmBefestigung mit M8-Schraube

Cable pulley 52/4

Schlagfeste Kunststoff-Seilrolle; Durchmesser 52 mm Maximale Traglast: 150 Kg eingepresste Gleitlager sorgen für eine stabilen Lauf Für Seildurchmesser bis 4 mm Made in Germany

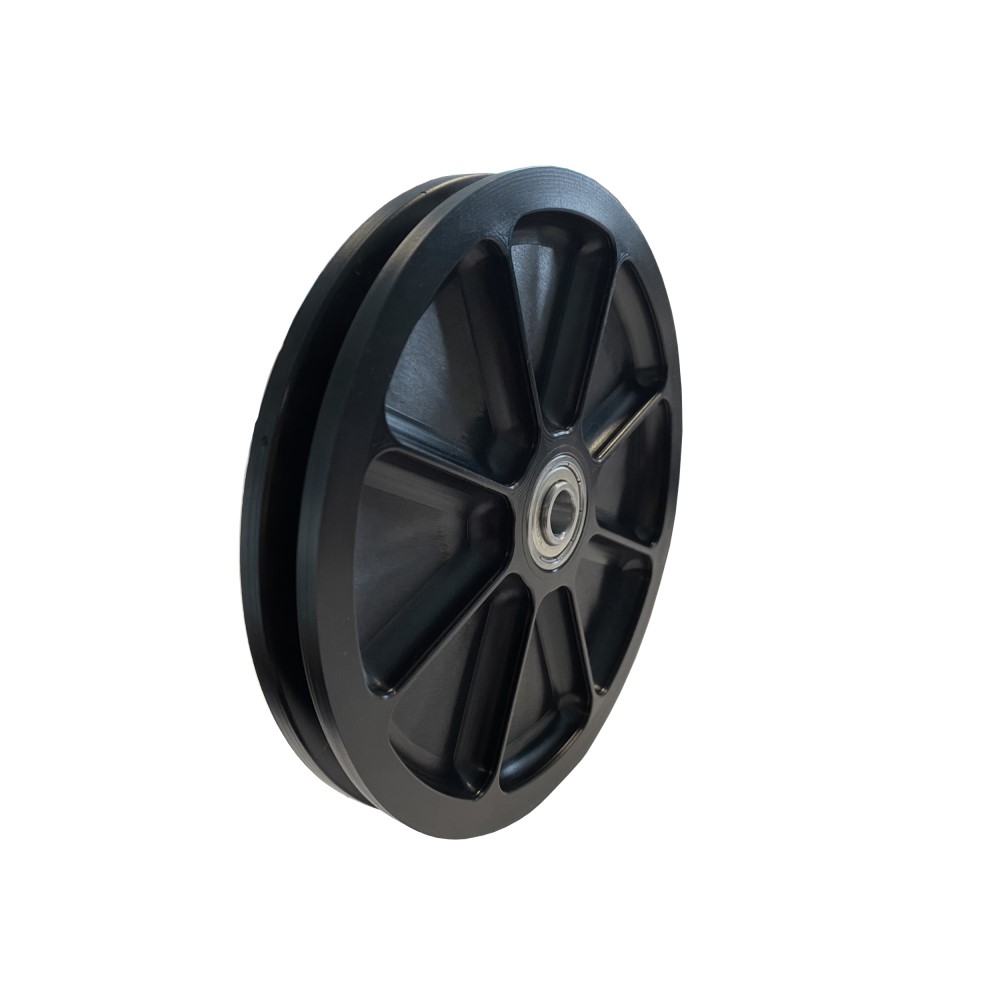

Cable Pulley 140/4 - with ball bearing or plain bearing

140 mm Seilrolle aus schlagfestem Kunststoff Geeignet für Seile bis 4 mm Durchmesser mit breitem Gleitlager / abschersicher und druckfest Maximale Traglast: 250 kg Made in Germany

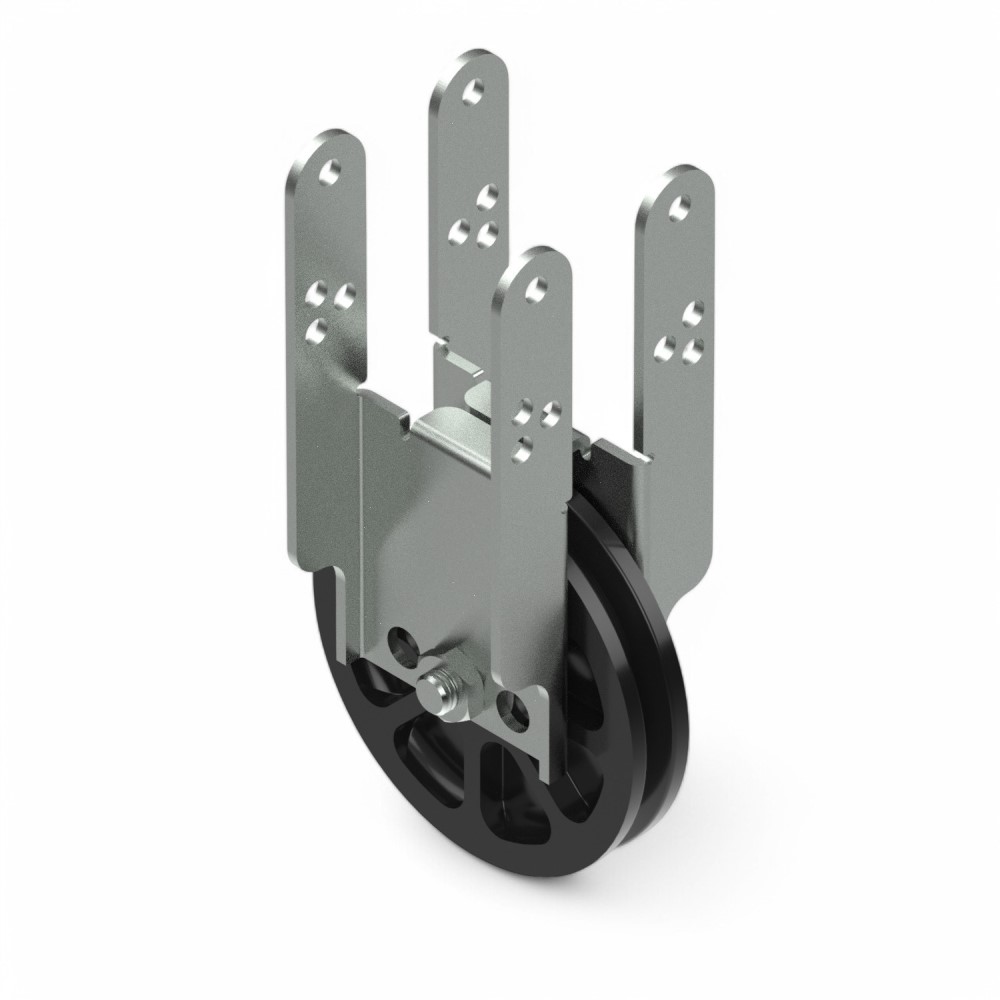

Cable pulley 100 with universal clamp 2" x 2"

The 100 mm pulley can be mounted on the rear side of square tubes in the shading system. Its axle position can be adjusted to one of three different heights using the three holes in the steel bracket.The 100 mm H pulley is pre-mounted for rear mounting. Front or under mounting is also possible if the axle position of the pulley is changed. Suitable for wire ropes up to 3 mm in diameter.Fits the following square tubes: 2 x 2 Material: Pulley: impact-resistant plasticBracket: galvanized steel

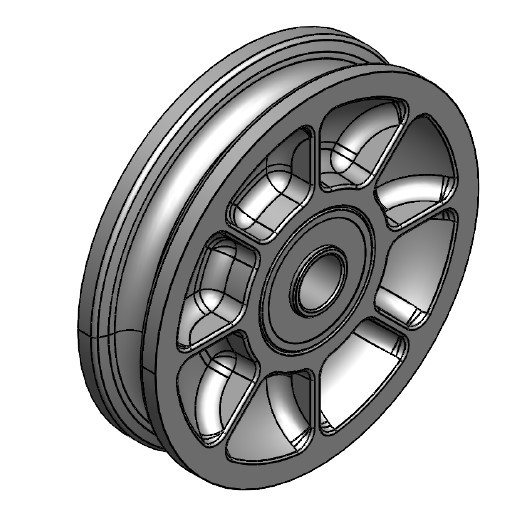

Cable pulley 75/8

Schlagfeste Kunststoff-Seilrolle Durchmesser 75 mm Mit doppelt verbauten Gleitlagern Maximale Traglast: 150 kg Gleitlager standardmäßig inkl. Distanzring Für Seildurchmesser bis 8 mm Eignet sich für 10 mm Bolzen Made in Germany

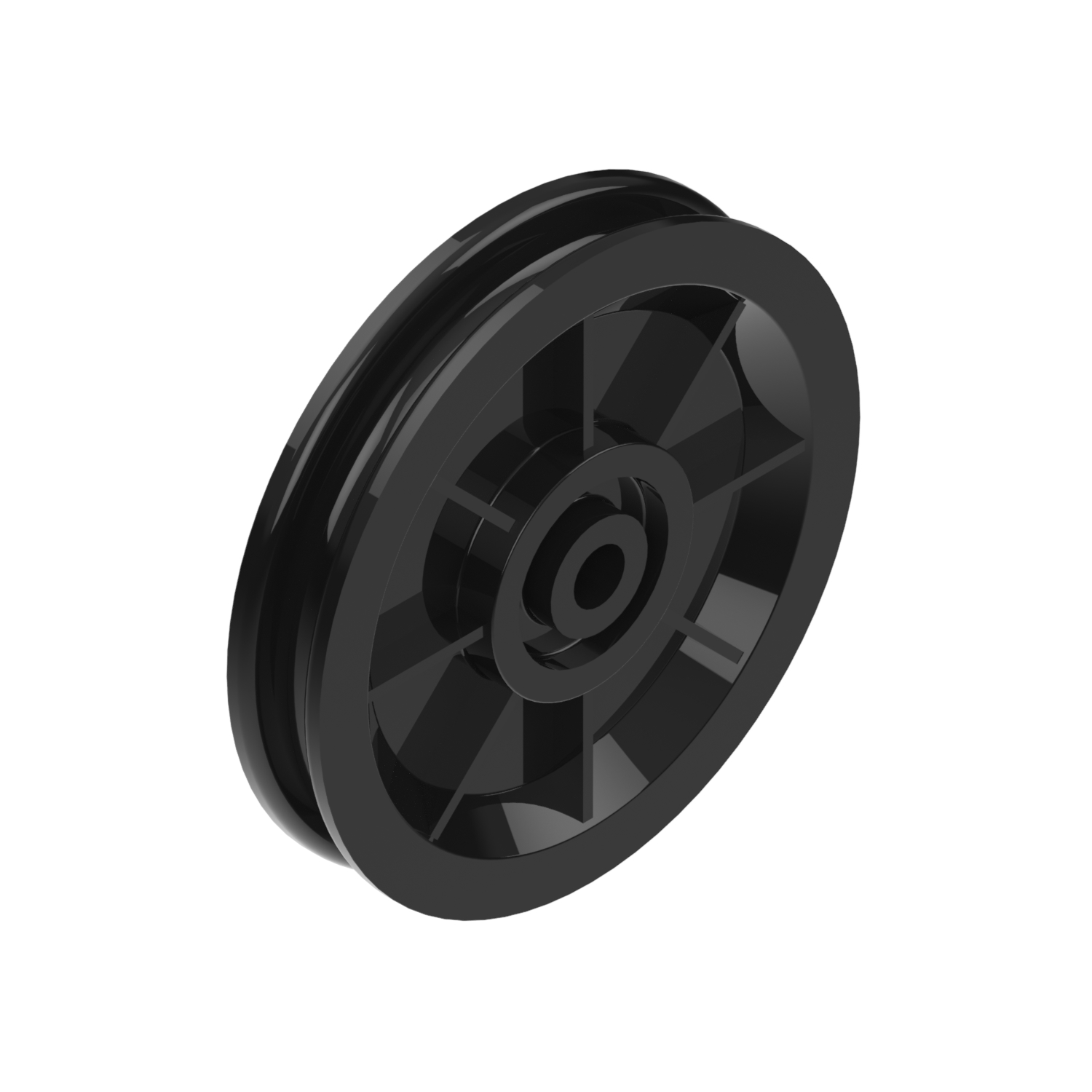

Cable pulley 90, with plain bearing

Unsere Seilrolle mit Gleitlager kann für die Konstruktion von Seilzügen in verschiedenen Anwendungsbereichen. Die 90 mm Umlenkrolle mit Gleitlager ist für Drähte und Seile mit einem Durchmesser bis Ø 7 mm geeignet.Die maximale Traglast beträgt 100 kg. Dank des Gleitlagers ist diese Seilrolle korrosionsbeständig und eignet sich besonders für den Gewächshaus- und Stallbau.

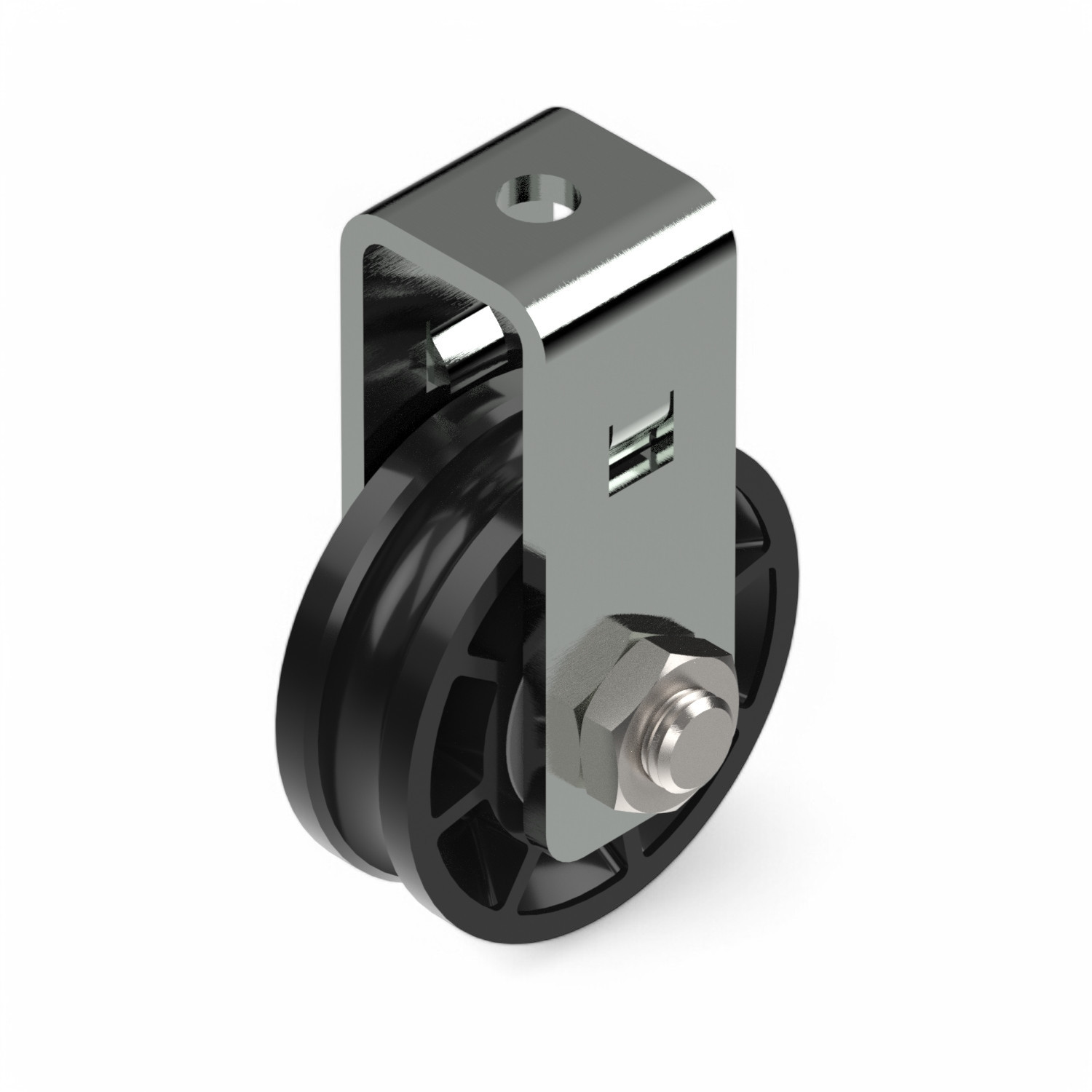

Cable Pulley Ø 52 mm / Ø 8 mm - with steel bracket

Thanks to two ball bearings, the 52 mm pulley is guided particularly securely on the axle and has a high level of stability under shear loads.The galvanised steel bracket can be attached to your construction with an M8 screw. The retaining bracket can also be detached from the pulley to make installation as easy as possible, even in installation situations that are difficult to access. Impact resistant pulleyGalvanised steel bracketTwo ball bearingsLoad capacity: up to 280 kgMade in GermanyOuter diameter: 52 mmTotal height: 77,75 mmTotal width: 20 mmRope diameter: up to Ø 8 mmFastening with M8 screw / bolt

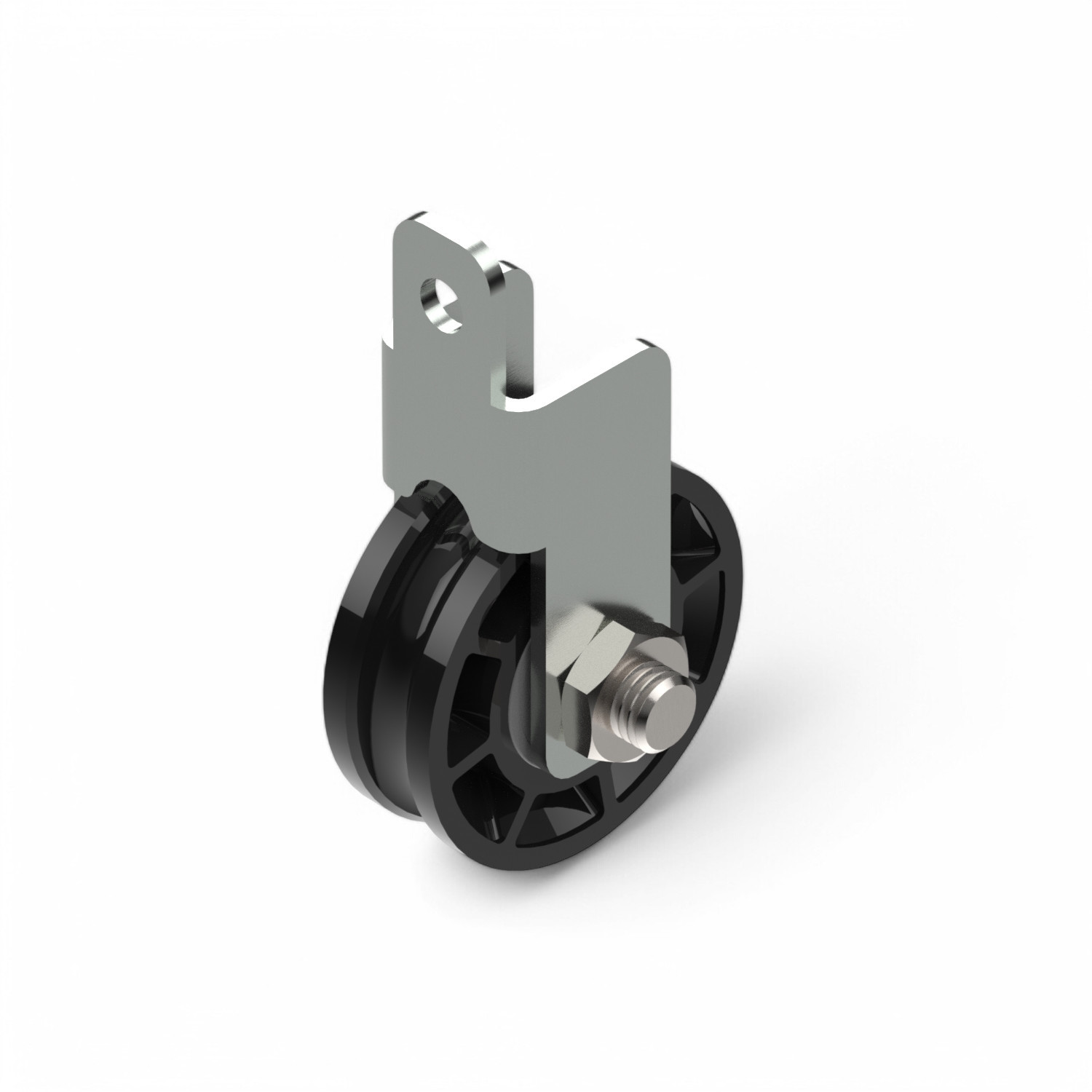

Cable pulley 52/4 mm with holder for lifting / lowering heater

Thanks to two ball bearings, the 52 mm pulley is guided particularly securely on the axle and has a high level of stability under shear loads.The galvanised steel bracket can be attached to your construction with an M8 screw. The retaining bracket can also be detached from the pulley to make installation as easy as possible, even in installation situations that are difficult to access. Impact resistant pulleyGalvanised steel bracketTwo ball bearingsLoad capacity: up to 280 kgMade in GermanyOuter diameter: 52 mmTotal height: 77,75 mmTotal width: 20 mmRope diameter: up to Ø 8 mmFastening with M8 screw / bolt

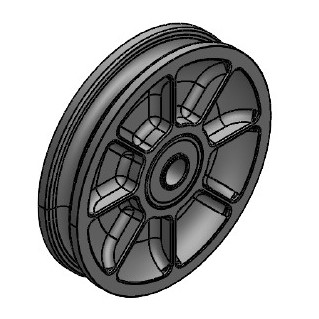

Seilrolle 90/8

Schlagfeste Kunststoff-SeilrolleDurchmesser 90 mmFür Seildurchmesser bis 8 mm Kompatibel mit 8 mm Bolzen Made in Germany

Cable pulley 100, double ball bearing

All-purpose 100 mm pulley made of high impact resistant plastic. The pulley can be used in shading systems as well as in several other application areas. Some of them are: construction and maintenance of fitness equipment, stage construction and media technique, construction of garage doors. Diameter 100 mmMaximum loading capacity: 170 Kg Double ball bearing with spacer ring For cord and wire with a maximum diameter of 4 mmCompatible with 10 mm bolts

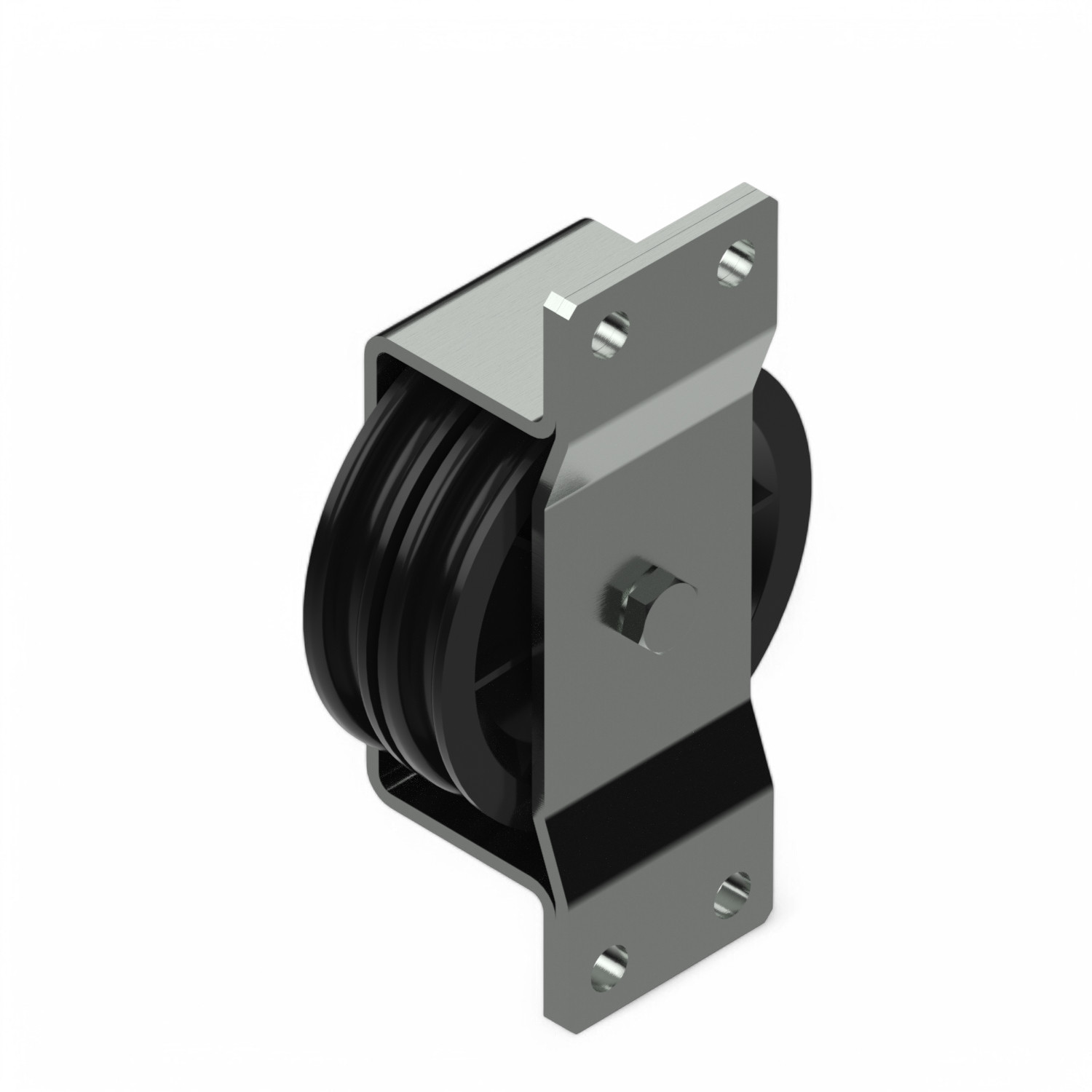

Double Pulley 90 mm, slide bearing, outdoor usage

This pulley is used primarily in housing equipment. It is corrosion-resistant thanks to the stainless steel holder and thus adapted to the conditions in the stable building. The cable pulleys can be used independentely from each other. They are intensionally equipped with the slide bearing and not with the ball bearing to avoid corrosion.The pulleys with a diameter of 90 mm are for wire diameters up to 7 mm suitable.

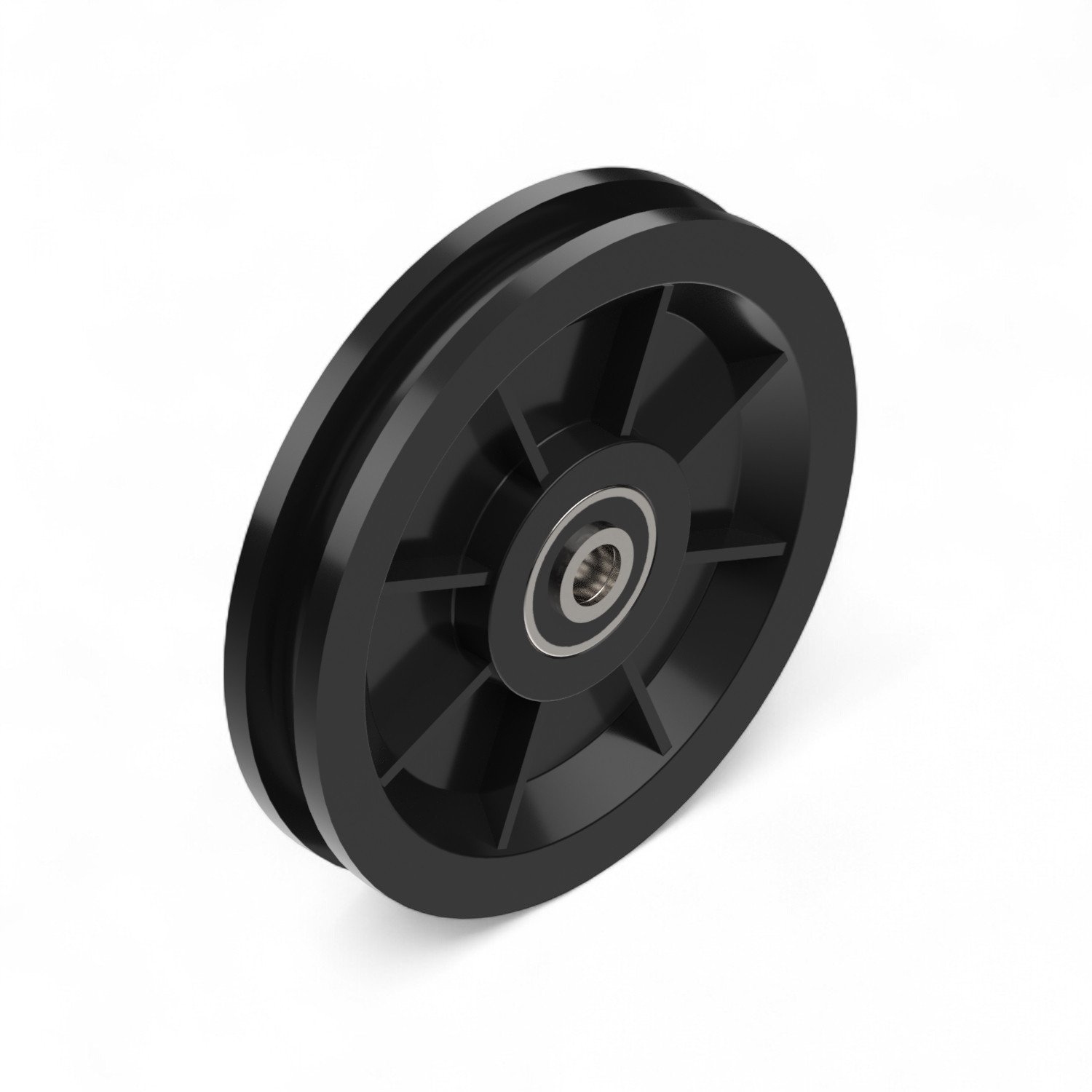

Seilrolle 90/8

Schlagfeste Kunststoff-Seilrolle; Durchmesser 90 mm Maximale Traglast: 250 Kg - geeignet beispielsweise für die Konstruktion von Fitnessgeräten Mit breitem Gleitlager Für Seildurchmesser bis 8 mm Kompatibel mit 10 mm Bolzen Made in Germany

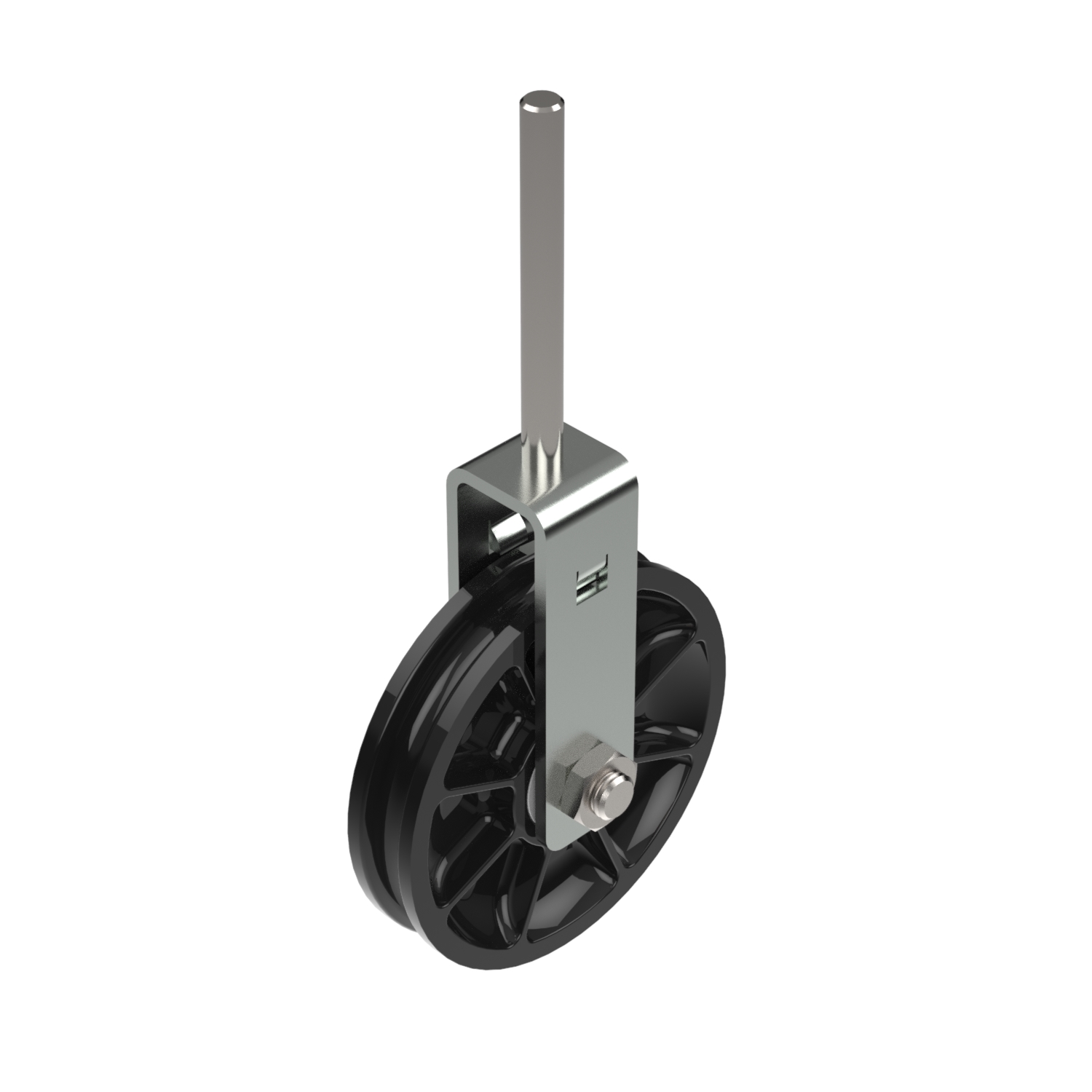

Cable pulley 90 with metric bolt M 8x80, ball bearing

All-purpose 90 mm pulley made of high impact resistant plastic with metric bolt M 8x80. The pulley can be used in shading systems as well as in some other application areas, such as : construction and maintenance of fitness equipment, stage construction and media technique, construction of garage doors. Diameter 90 mmMaximum loading capacity: 100 Kg Dustproof ball bearingFor cables and wires with a maximum diameter of 7 mmPulley is built into a hot galvanized clamp with metric bolt M 8x80.
