aircraft cable galv. 7x7 3 mm x 500m

A durable aircraft cable for shading systems.Material: Steel Galvanized

Cable clamp

Is used for the attachement of 2 mm aircraft wire. Material: Steel Galvanized

aircraft cable black poly coated 1x7 1,7- 2,5mm

Our black poly coated cable is used for fastening shading screens. Its plastic coating does not damage the cloth and thus increases its durability. It can also serve as a support for polyester wire in lay flat shading system.Material: Steel with plastic coating

aircraft cable INOX 7x7

A durable, stainless aircraft cable for cable drive shadings systems. Thanks to these characteristics it specially fits external constructions. It is compatible with our slip joint. Tensile strength:Material: Stainless Steel

Pulley 40 (TGU) with splint bracket

This plastic pulley has a split bracket for attachment to already strained cables. In this case the pulley functions as a guiding roller. Being turned around the pulley can be suspended with the included S-hook. In this position the pulley can divert cables. Made of high impact resistant plastic Diameter 40 mm Can be used for cables with a diameter up to 7 mm With an axel made of stainless steel Comes with a S-hook for suspending

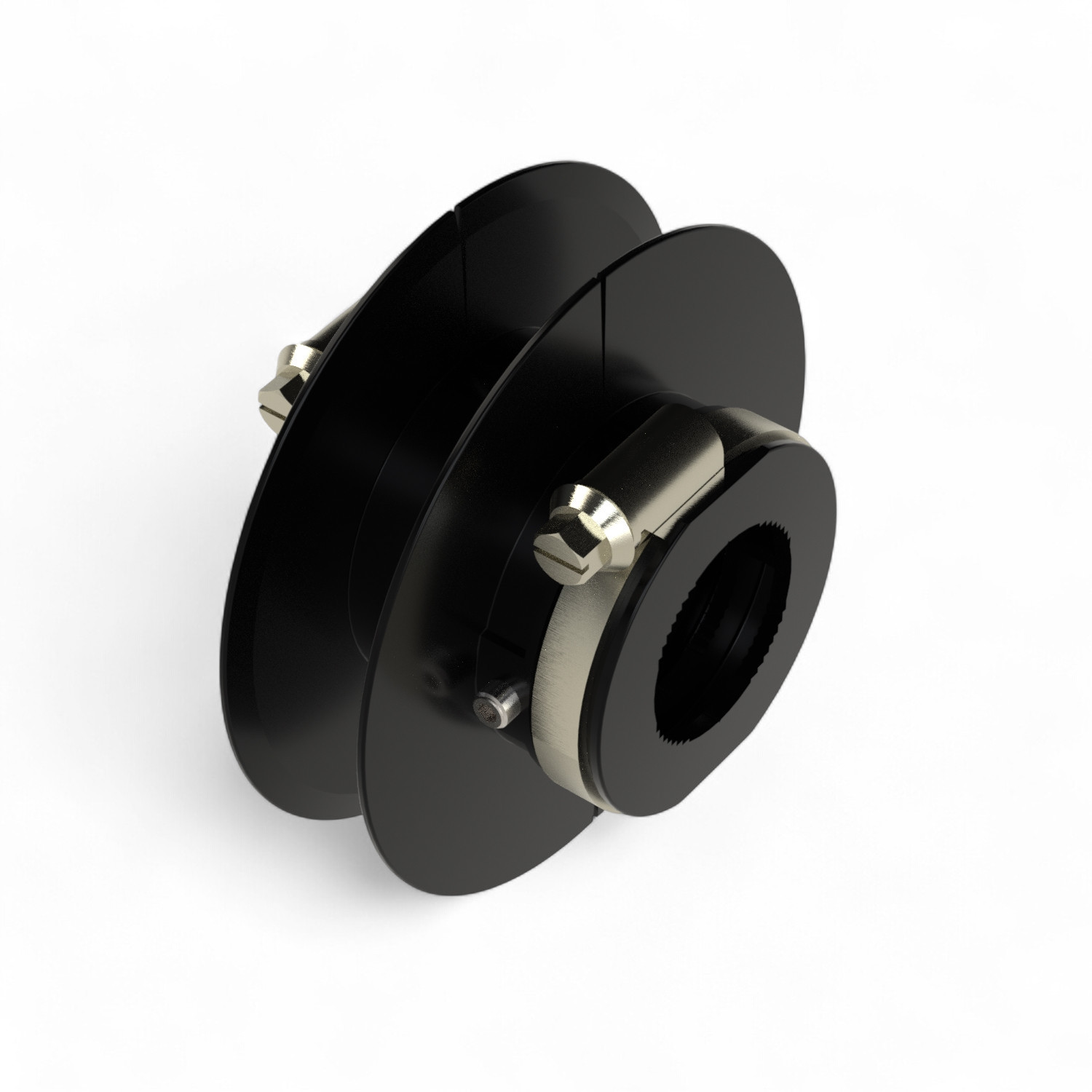

Vent pulley unit

The vent pulley unit provides guided and controlled rolling-up of the ribbon in side ventilations with drop down fabrics. Thanks to the two-shell construction a later mounting in the installation is possible by attaching the pulley on both sides of the drive shaft with two hose clamps. Additonally it can be fixed onto the shaft with the included bolt. The vent pulley can be used for tubes with a diameter from 32 to 34 mm.Material: Plastic

cable pulley 62.52.6 - ball bearing

Cable pulley made of high impact resistant plastic with a diameter of 57 mm for various systems with cable drive. The pulley can also be used for other purposes such as: construction and maintenance of fitness equipment, stage construction and media technique, construction of garage doors. Diameter 57 mmDustproof ball-bearing For able and wire with a maximum diameter of 4 mmComaptible with 6 mm bolts

Cable drum 1" - type I - Motion range 570 cm without hardware

Diese Seiltrommel ermöglicht durch die Vorkerbung im Kunststoff ein geordnetes Aufwickeln und damit einen gleichmäßigen Laufweg des Drahtseils in der Schattieranlage. Eine Friktion der aufgewickelten Drähte und Seile wird verhindert.Der zweischalige Aufbau der Seiltrommel ermöglicht eine nachträgliche Installation auf der Antriebswelle. Verbunden werden die beiden Schalen mit zwei mitgelieferten Achsschrauben. Diese fixieren die Seiltrommel auch auf der Welle. Die Trommel ist aus schlagfestem Kunststoff - dieses Material schont das Drahtseil und erhöht seine Lebensdauer. Geeignet für Drahtseile mit einem Durchmesser bis 3 mm Geeignet für Antriebswellen von 34 mmKapazität der Seiltrommel: fasst bis zu 5,70 m SeilMaterial: Seiltrommel: schlagfester Kunststoff

Cable pulley 100 for wires until 20 mm

Thanks to two ball bearings, the 100 mm pulley is guided particularly securely on the axle and has a high level of stability under shear loads.The assembly is ideally done with the enclosed spacers. To avoid damaging the bearing, a stop nut should be used and the screw should not be tightened too much during assembly.Impact resistant pulleyTwo ball bearings with enclosed spacersLoad capacity: up to 200 kgMade in GermanyOuter diameter: 100 mmcompatible with 10 mm boltTotal width: 35 mmRope diameter: up to Ø 20 mm

Cable pulley 100, double ball bearing for wires until 9 mm

Thanks to two ball bearings, the 100 mm pulley is guided particularly securely on the axle and has a high level of stability under shear loads.The integrated spacers make it particularly easy to mount the pulley. No spacers or washers are needed.Impact resistant pulleyTwo ball bearings with integrated spacersLoad capacity: up to 350 kgMade in GermanyOuter diameter: 100 mmcompatible with 10 mm boltTotal width: 20 mmRope diameter: up to Ø 9 mm

Cable pulley 52/8 - Ball bearing or Plain bearing

Schlagfeste Kunststoff-Seilrolle; Durchmesser 52 mm Maximale Traglast: 150 Kg eingepresste Gleitlager sorgen für eine stabilen Lauf Für Seildurchmesser bis 8 mm Made in Germany

Cable drum 1" - Typ II for tube 33,4 mm - Motion range 570 cm

This grooved cable drum ensures friction free, well-ordered winding and therefore a smooth movement of driving cable in shading systems .Two-halves model of the drum makes it possible to fasten it onto drive shaft subsequently. The two halves are connected with four screws included intothe set. To install the drum onto the drive shaft a special headless screw is needed.The cable drum is made of high-impact resistant plastic, that is friendly to cables and therefore increases their durability. Can be used with cords with a diameter up to 3 mm For 34 mm drive shaftsCapacity of cable drum: up to 5,70 mMaterial:Cable drum: impact resistant plastic

Pulley with hook - PU = 5 pcs

Application: Guide pulley for tensioned wire ropes in greenhouses Material: Rugged construction for extended service life Installation: Not suitable for retrofitting on already tensioned wires Alternative: TGU Awning Pulley 40 for retrofitting Packaging Unit: 5 pieces The Awning Pulley with Hook is purpose-built to guide tensioned wire ropes within greenhouse structures. It ensures smooth movement and reliable support. Please note: this pulley is not suitable for post-installation on pre-tensioned cables. For retrofitting, we recommend the TGU Awning Pulley 40. With high-quality materials and robust design, this pulley provides the stability and longevity needed for continuous operation in professional greenhouse applications.

Cable pulley 90 with universal clamp 50.50

This pulley can be mounted on square tubes in the shading system. Its axle position can be adjusted to one of three different heights using the three holes in the steel bracket.The 90 mm UF pulley is pre-mounted in such a way that it can be used for both under and front mounting.The 90 mm H pulley is pre-mounted in such a way that it can be used for rear mounting. The pulley can be used for cables with a diameter up to 8 mm Suits the following square tubes: 50 x 50, 50 x 55, 50 x 30, 50 x 25, 50 x 20 mm Material: Pulley: high impact resistant plasticBracket: Galvanized steel

Cable Pulley 90/8 with clamp - double ball bearing

Thanks to two ball bearings, the 90 mm pulley is guided particularly securely on the axle and has a high level of stability under shear loads.The galvanised steel bracket can be attached to your construction with an M8 screw. The retaining bracket can also be detached from the pulley to make installation as easy as possible, even in installation situations that are difficult to access. Impact resistant pulleyGalvanised steel bracketTwo ball bearingsLoad capacity: up to 350 kgMade in GermanyOuter diameter: 90 mmTotal height: 115,75 mmTotal width: 41 mmRope diameter: up to Ø 8 mmFastening with M8 srew / bolt

Cable pulley with clamp 2.2

This 90 mm pulley with clamp can be attached to square tubes. Due to cable tension a centred mounting position is ensured.The pulley can be used for cables with a diameter up to 3 mm. Suits the following square tubes: 50 x 50 mmMaterial:Pulley: high impact resistant plasticClamp: Galvanized steel For screwing you will need:- M 6 x 65 bolt- M 6 nut

Steel tube galv narrowed

This steel tube is particular stable. It is used as a push-pull-tube for shading- and ventilation systems in greenhouses. The tubes can be easily connected by inserting them into each other through their swaged ends and bolting them afterwards. Bolt and nut 27.32 for steel tubes are needed.Diameter: 32 mm Wall thickness: 1.5 mm Length: 6500 mm Material: Galvanized Steel

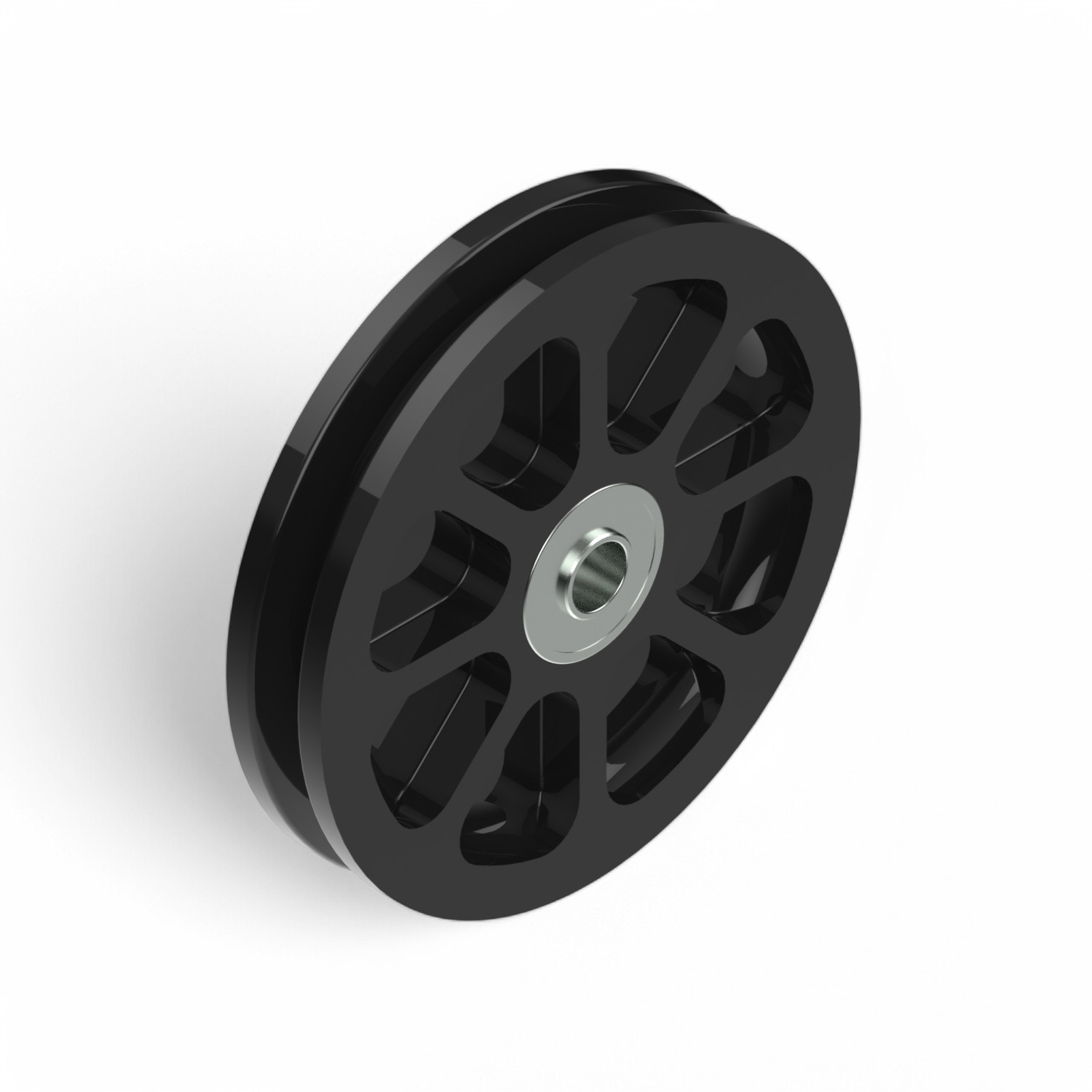

Cable pulley 100, double ball bearing

All-purpose 100 mm pulley made of high impact resistant plastic. The pulley can be used in shading systems as well as in several other application areas. Some of them are: construction and maintenance of fitness equipment, stage construction and media technique, construction of garage doors. Diameter 100 mmMaximum loading capacity: 170 Kg Double ball bearing with spacer ring For cord and wire with a maximum diameter of 4 mmCompatible with 10 mm bolts

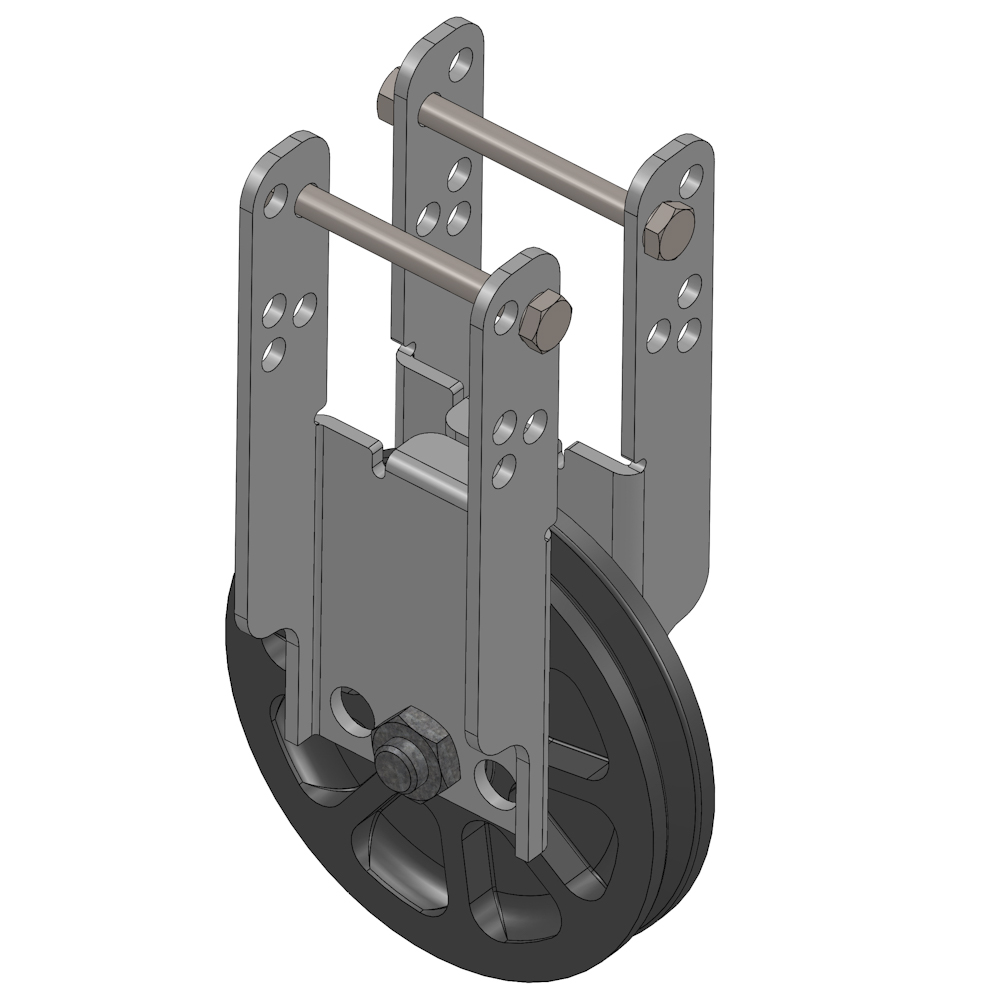

Cable pulley 100 with universal clamp 50.50

The 100 mm pulley can be mounted on the rear side of square tubes in the shading system.Its axle position can be adjusted to one of three different heights using the three holes in the steel bracket.The 100 mm UF pulley is pre-mounted in such a way that it can be used for both under and front mounting.The 100 mm H pulley is pre-mounted for rear mounting.It is possible to re-mount the pulley afterwards.Suitable for wire ropes up to 3 mm in diameter. Fits the following square tubes:50 x 50, 50 x 55, 50 x 30, 50 x 25, 50 x 20.Material: Pulley: impact-resistant plasticBracket: galvanized steel

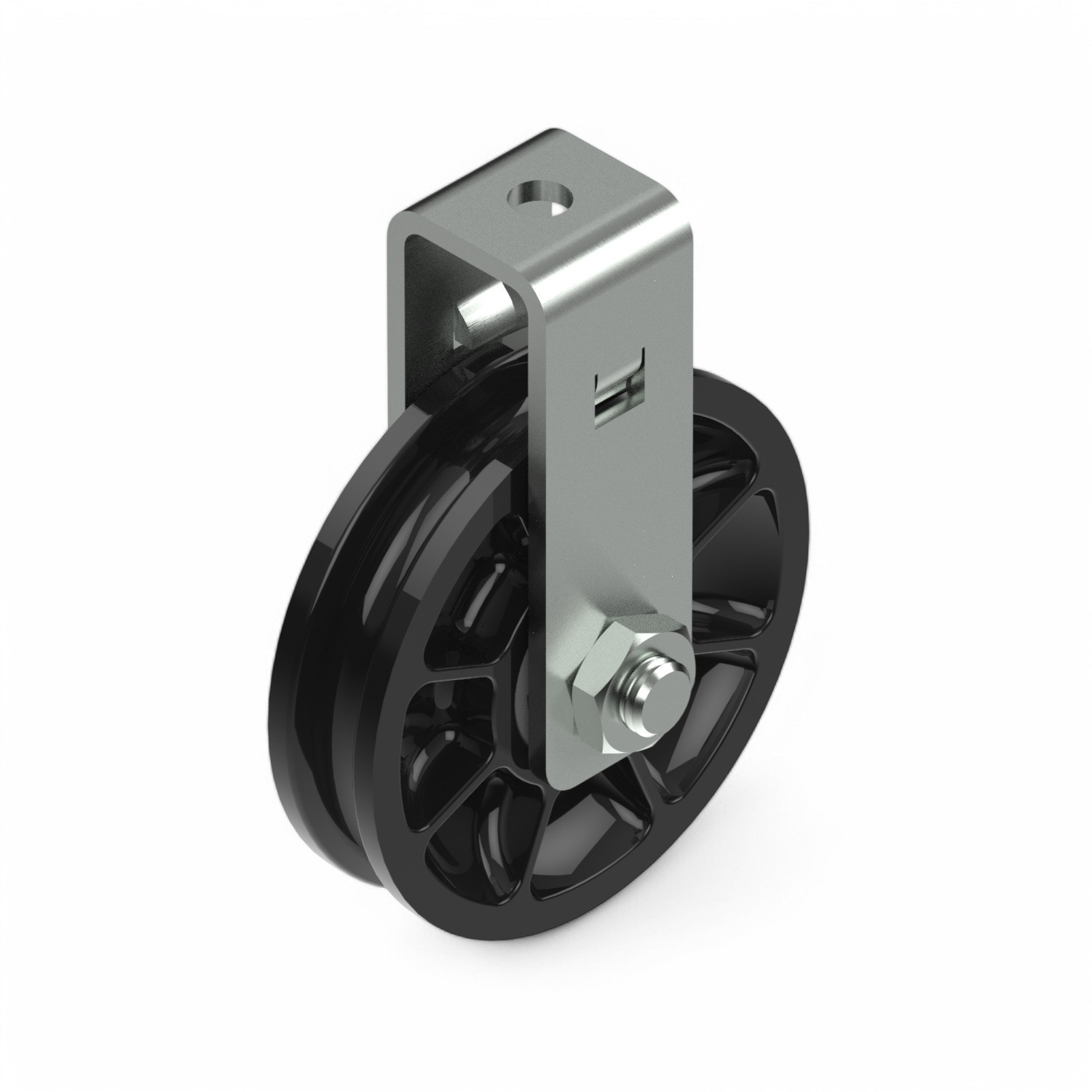

Cable Pulley 75/8 with clamp - double ball bearing

Thanks to two ball bearings, the 75 mm pulley is guided particularly securely on the axle and has a high level of stability under shear loads.The galvanised steel bracket can be attached to your construction with an M8 screw. The retaining bracket can also be detached from the pulley to make installation as easy as possible, even in installation situations that are difficult to access. Impact resistant pulleyGalvanised steel bracketTwo ball bearingsLoad capacity: up to 350 kgMade in GermanyOuter diameter: 75 mmTotal height: 100,75 mmTotal width: 20 mmRope diameter: up to Ø 8 mmFastening with M8 screw / bolt

Cable drum - type III - Motion range 570 cm

This grooved cable drum ensures friction free, well-ordered winding and therefore a smooth movement of driving cable in shading systems .Two-halves model of the drum makes it possible to fasten it onto drive shaft subsequently. The two halves are connected quick and easy with a hose clamp and then installed onto the drive shaft with a headless screw.The cable drum is made of high-impact resistant plastic, that is friendly to cables and therefore increases their durability. Can be used with cords with a diameter up to 3 mm For 34 mm drive shaftsCapacity of cable drum: up to 5,70 m

Cable Pulley Ø 52 mm / Ø 4 mm - with steel bracket

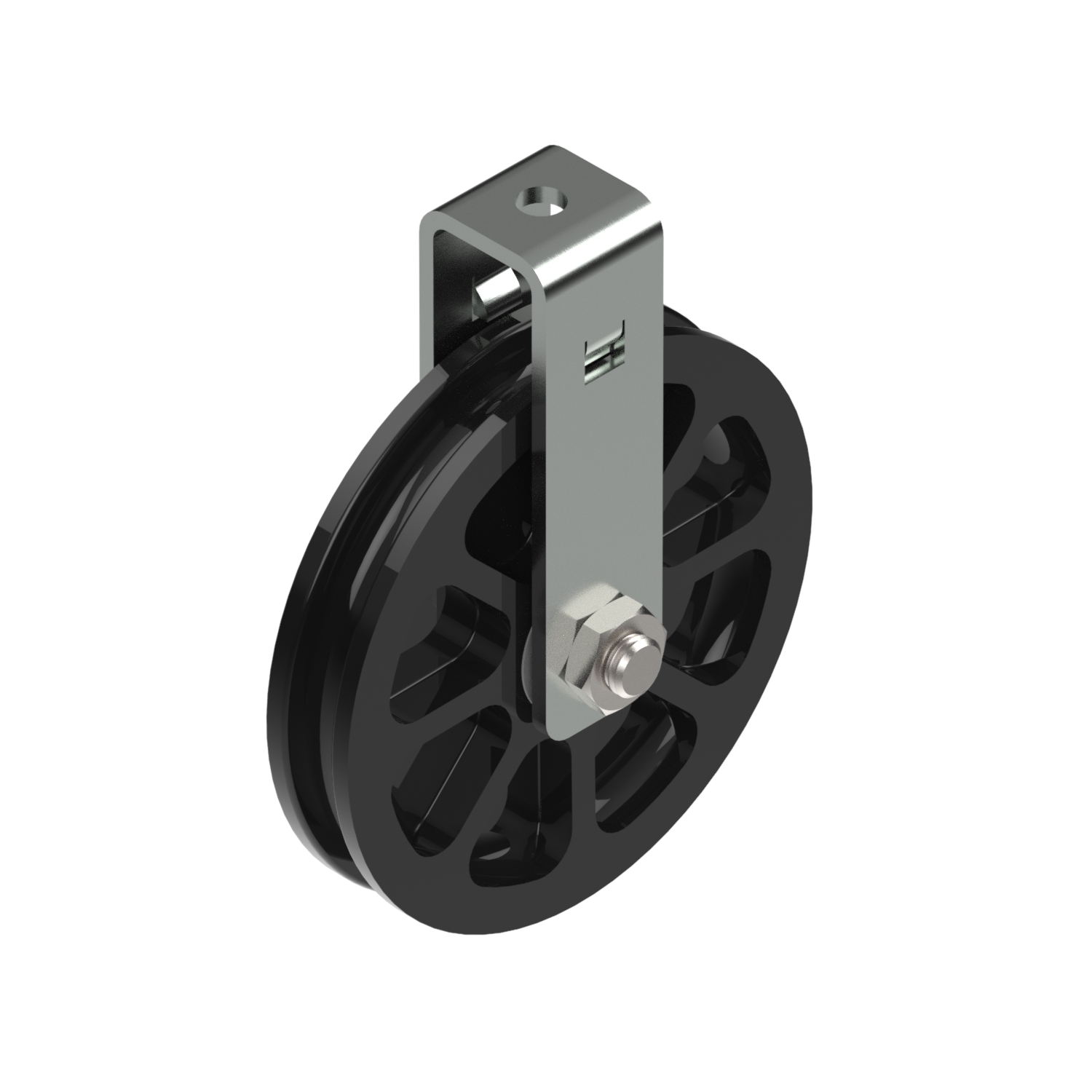

Cable pulley 100 with clamp - Wires until 9 mm

Durch zwei verbaute Kugellager ist die 100 mm Umlenkrolle besonders sicher auf der Achse geführt und hat eine hohe Stabilität bei Scherlasten.Der Haltebügel aus verzinktem Stahl lässt sich mit einer M8- Schraube an Ihrer Konstruktion befestigen. Der Haltebügel lässt sich auch von der Umlenkrolle lösen um auch in schwer zugänglichen Einbausituationen eine möglichst einfache Montage zu ermöglichen. Schlagfeste UmlenkrolleHaltebügel aus verzinktem Stahlzwei KugellagerTraglast: bis zu 350 kgMade in GermanyAußendurchmesser: 100 mmGesamthöhe: 125,75 mmGesamtbreite: 20 mmSeildurchmesser: bis Ø 9 mmBefestigung mit M8-Schraube

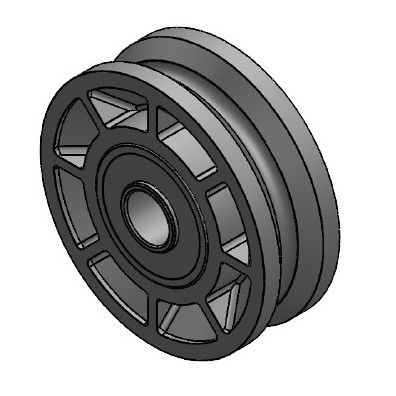

Cable pulley 52/4

Schlagfeste Kunststoff-Seilrolle; Durchmesser 52 mm Maximale Traglast: 150 Kg eingepresste Gleitlager sorgen für eine stabilen Lauf Für Seildurchmesser bis 4 mm Made in Germany
