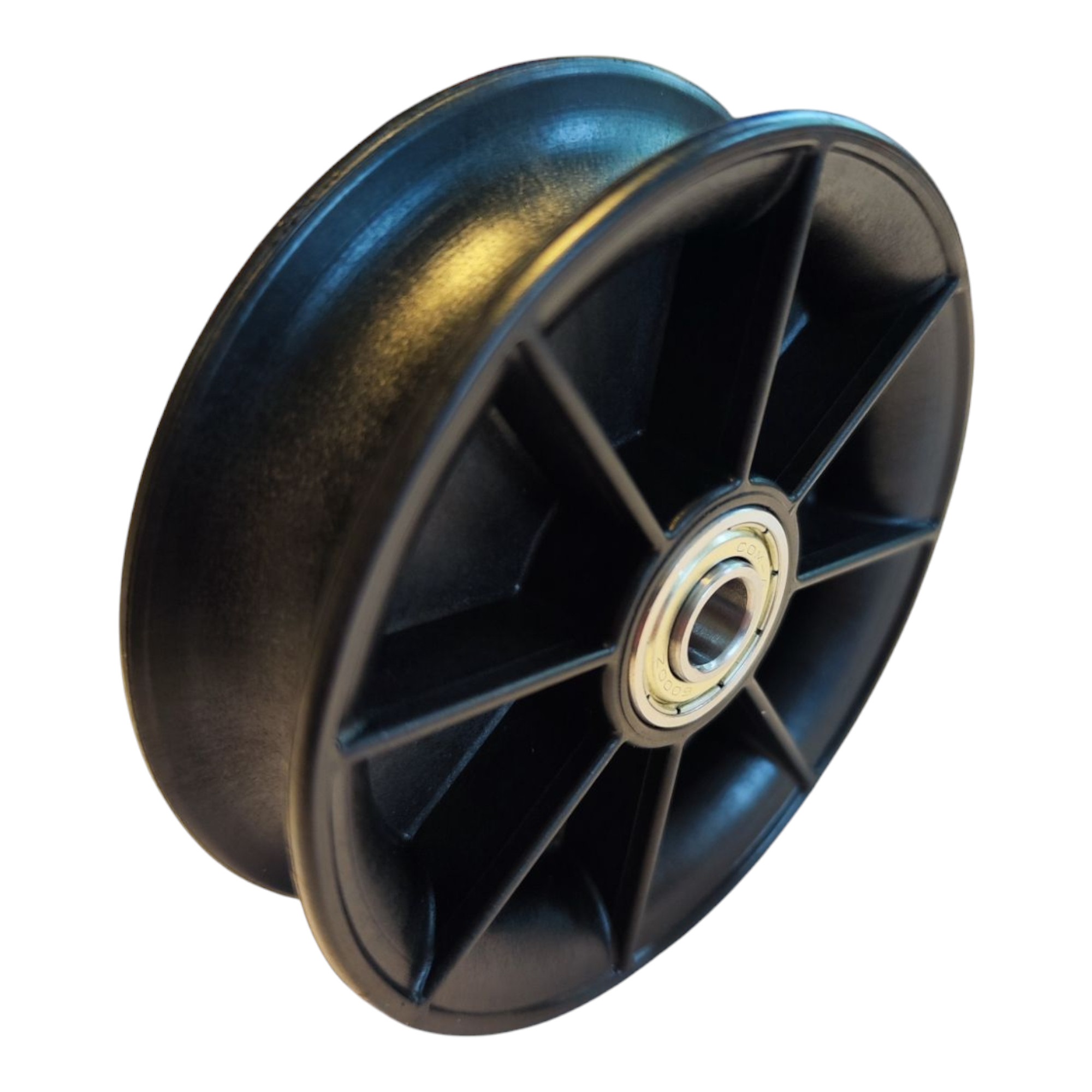

Cable pulley 100 for wires until 20 mm - PU = 1 pcs
0,00 €*
Available, delivery time 1-3 days
Processing starting January 7, 2025
Please note - limited stock: 2
Save as PDF Product number: 04200110-1
Product information "Cable pulley 100 for wires until 20 mm - PU = 1 pcs"
Thanks to two ball bearings, the 100 mm pulley is guided particularly securely on the axle and has a high level of stability under shear loads.
The assembly is ideally done with the enclosed spacers. To avoid damaging the bearing, a stop nut should be used and the screw should not be tightened too much during assembly.
- Impact resistant pulley
- Two ball bearings with enclosed spacers
- Load capacity: up to 200 kg
- Made in Germany

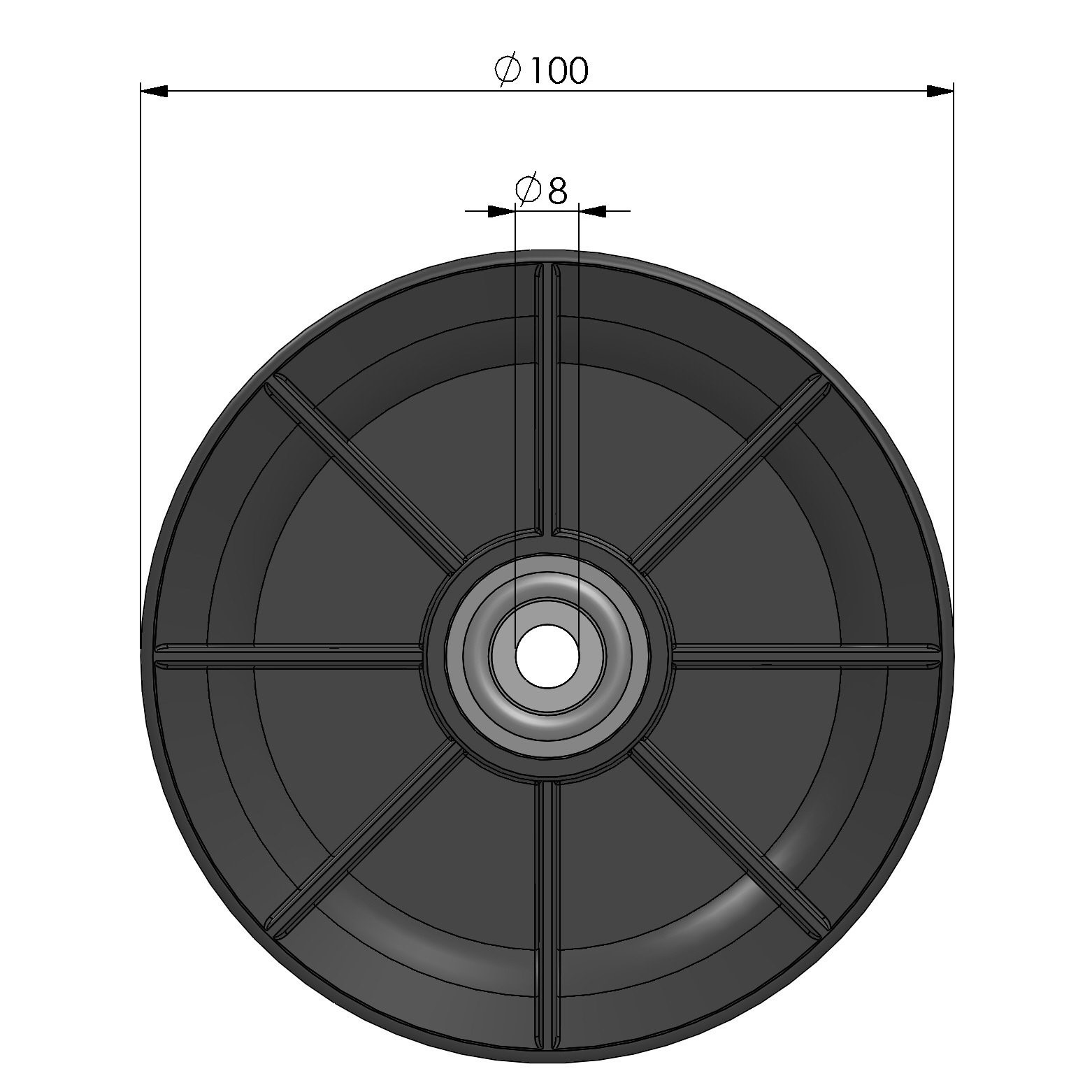

- Outer diameter: 100 mm
- compatible with 10 mm bolt

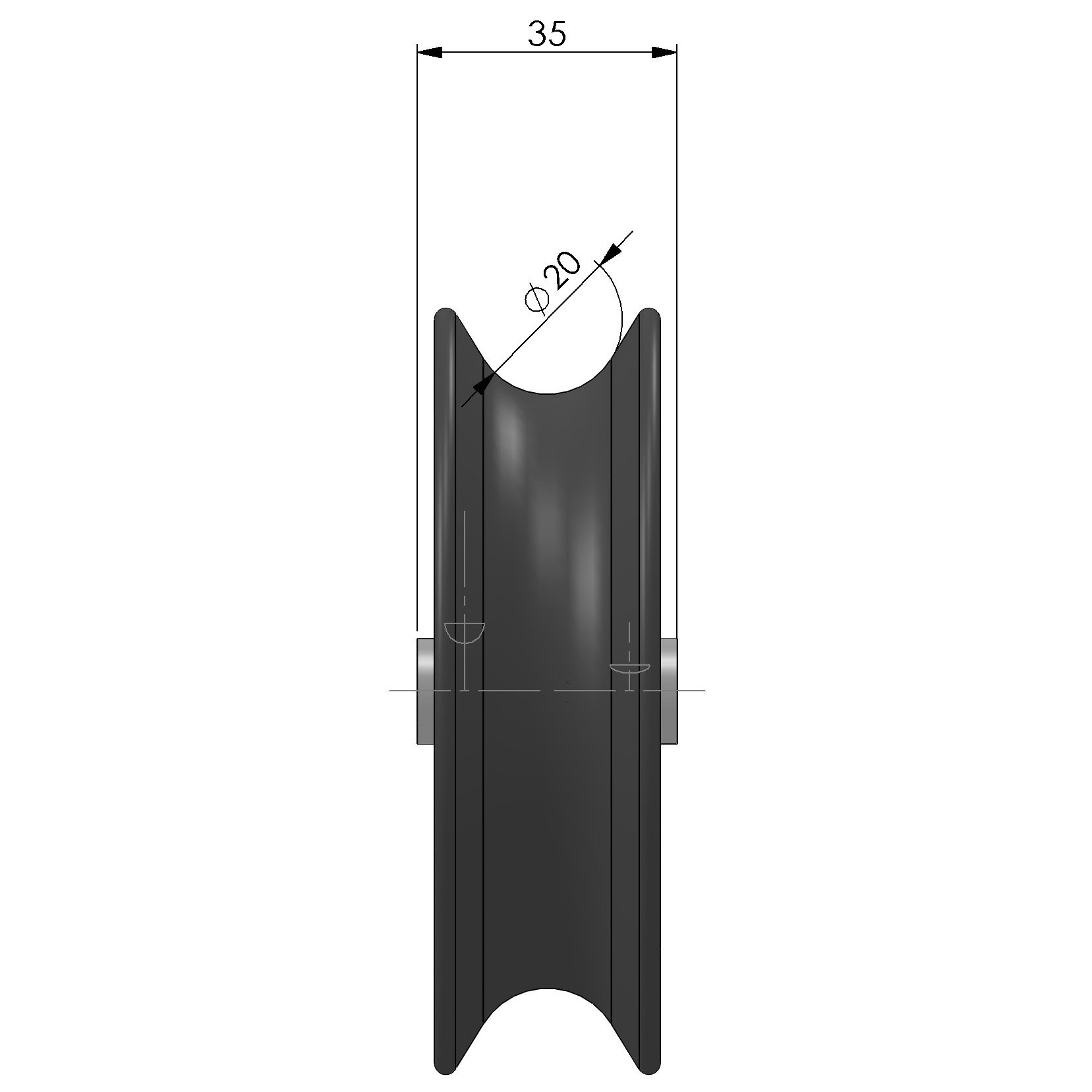

- Total width: 35 mm
- Rope diameter: up to Ø 20 mm
