Adaptor for roll-up tube

Ridder Art.-Nr.: 550025

Ridder Art-Nr.: 550032

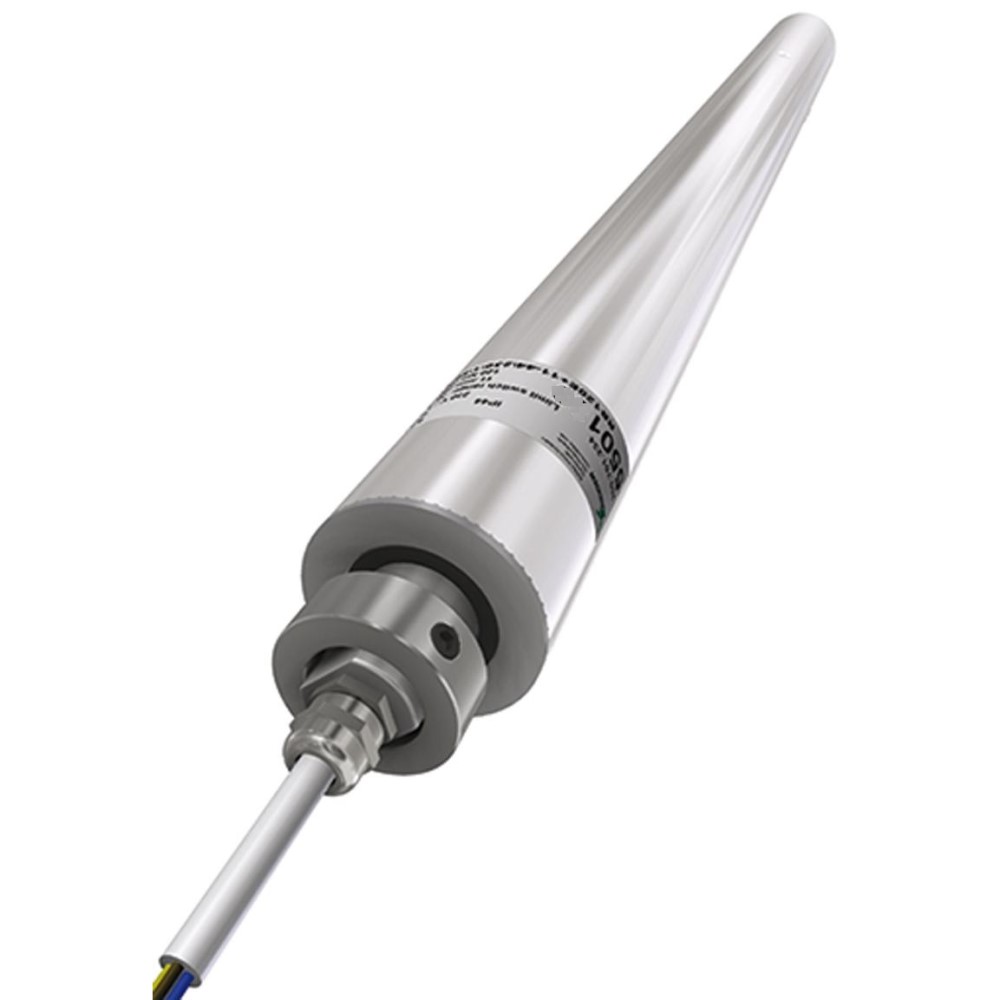

A TGU durable and robust tubular motor can be mounted onto 50 mm and 63 mm roll up tubes.The motor has a voltage of 230 V for European market. A variant of 120V for the American market is also available on request.The limit switches can be easily adjusted from the outside with an Allen key.The tubular motor is delivered with a 10x10 mounting bracket to be set onto the motor guide.

This steel tube is used as a drive shaft in shading and ventilation systems in large greenhouses. Due to its wall thickness of 3.25 mm, it is very resistant against torsion. The tube connector halves within our product range are used to connect the tubes. Diameter: 33.5 mm Wall thickness: 3,25 mm Length: 6050 mm Material: Steel, galvanized

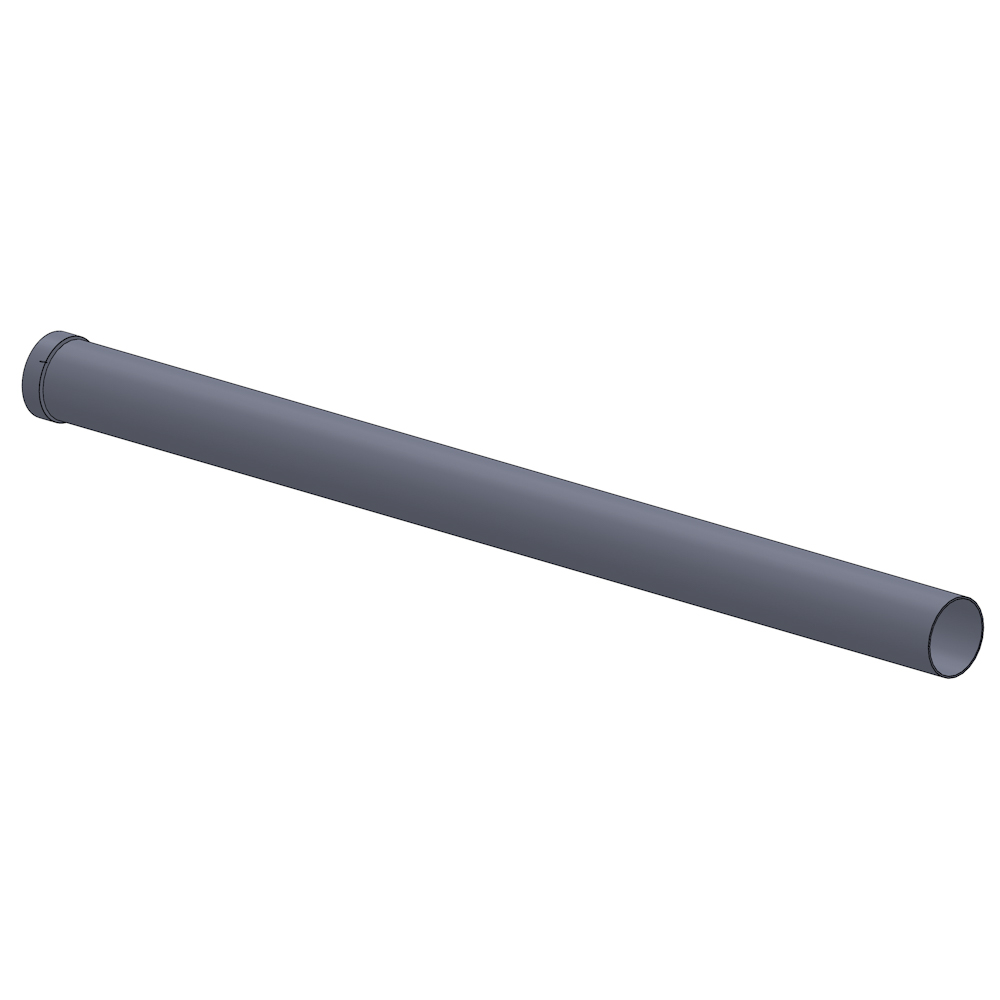

This steel tube is used as a drive shaft for ventilation systems and large shading systems in greenhouses.Due to its wall-thickness of 2,50 mm, it is resistant against torsion.The tubes can be easily connected by inserting them into each other through their swaged ends and bolting them afterwards. Bolt M8 x 50 with a nyloc nut M8 are neededDiameter: 1 Wall thickness: 2.5 mmLength: 6500 mmMaterial: Galvanised Steel

A TGU durable and robust tubular motor can be mounted onto 50 mm and 63 mm roll up tubes.The motor has a voltage of 230 V for European market. A variant of 120V for the American market is also available on request.The limit switches can be easily adjusted from the outside with an Allen key.The tubular motor is delivered with a 16x16 mounting bracket to be set onto the motor guide.

Ridder art-no. 550131

Ridder Art.-Nr.: 550180
