Adaptor axle 26

Application: Universal joints for drive shafts in shading and ventilation systems Bearings: Equipped with high-quality needle bearings for precise and durable motion transfer Adapters: Screw-on adapters available for a wide range of shaft formats Design: Slim and space-saving – robust and durable, made of black-coated steel Technical Specs: Maximum bending angle 34°, torque up to 70 Nm The Universal Joints for RW Drive Shafts ensure reliable power transmission in shading and ventilation systems with variable shaft routing. Thanks to integrated needle bearings, they provide smooth operation under high loads. Optional adapters allow easy screw-on connection to various shaft formats, offering maximum flexibility during installation. With their compact design and black-coated steel construction, these joints are both space-efficient and highly resistant – ideal for demanding environments.

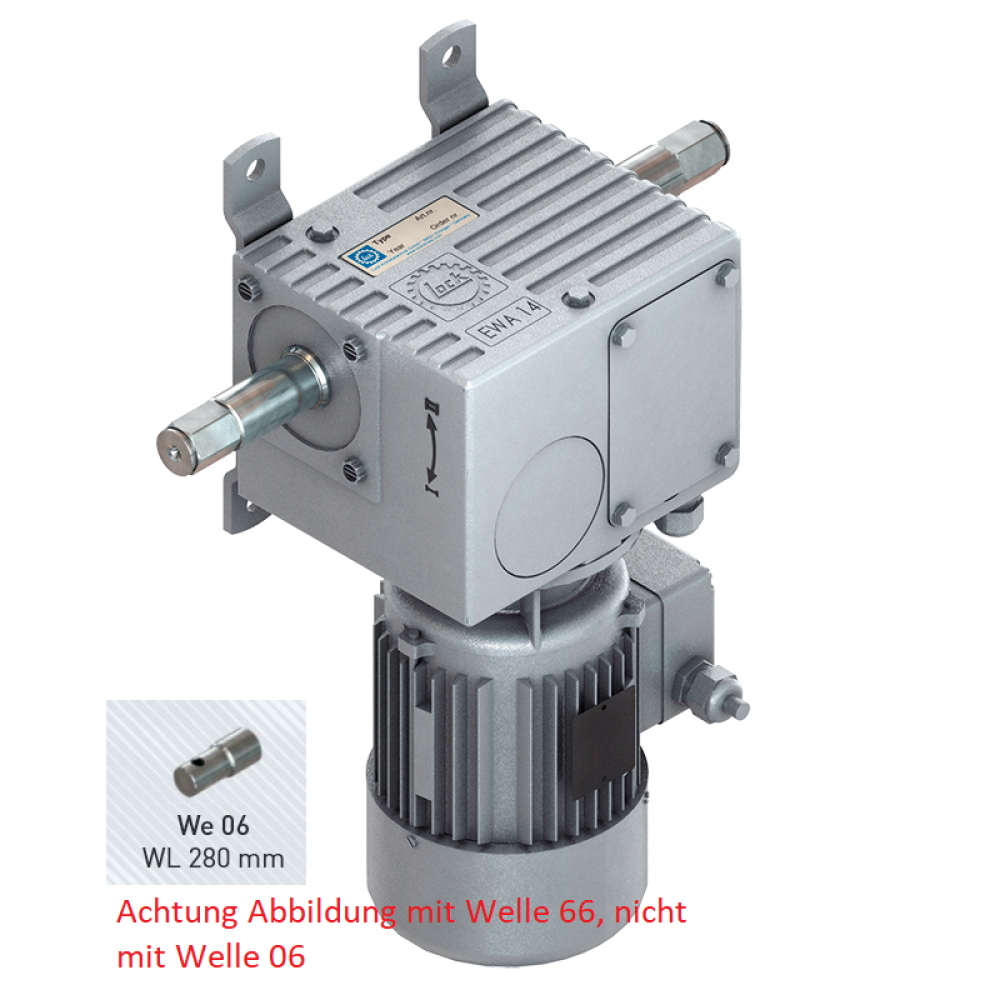

Application: Drive unit for horizontal shading systems in greenhouses Torque: 350 Nm Voltage: 400 V, 3~, 50 Hz Speed: 4.4 revolutions per minute Power: 0.25 kW Current: 2.00 A Shaft: Type 06 Limit switch: Precision gear limit switch END 20 for 580 shaft revolutions Features: Extremely quiet, self-locking double worm gear Maintenance-free and long-lasting Universal mounting: rear (standard) or optionally left-side (symmetrical) Wiring via 7-core cable The Lock EWA 14.3505 is a robust gear motor for horizontal shading systems. With 350 Nm torque and a quiet, self-locking double worm gear, it ensures reliable and low-noise operation. Its integrated limit switch and flexible mounting options make it ideal for demanding greenhouse installations.

Application: Drive technology for greenhouse shading and ventilation systems Torque: 90 Nm Voltage: 400 V / 50 Hz Speed: 5.6 rpm Shaft: Type 06 Limit switch: END20.20 The Lock EWA 10.0905 is a compact and powerful electric drive for shading and ventilation systems in greenhouses. With 90 Nm torque and 400 V operating voltage, it delivers reliable and precise control. Equipped with shaft type 06 and the END20.20 limit switch, it is suitable for a wide range of applications. The rotation speed of 5.6 rpm ensures smooth movement and high efficiency.

Application: Drive unit for horizontal shading systems in greenhouses Torque: 150 Nm Voltage: 400 V, 3~, 50 Hz Speed: 4.3 rpm Power: 0.17 kW Current: 0.90 A Shaft: Type 06 Limit switch: Precision gear limit switch END 20 for 580 shaft revolutions Features: Extremely quiet, self-locking double worm gear Maintenance-free and long-lasting Universal mounting: rear (standard) or optionally left-side (symmetrical) Wiring via 7-core cable The Lock EWA 12.1505 with shaft type 06 offers the same performance and reliability as its hexagonal counterpart, but with a different shaft interface. It’s ideal for horizontal shading systems requiring compact, quiet, and precise motor control.

Application: Drive unit for horizontal shading systems in greenhouses Torque: 250 Nm Voltage: 400 V, 3~, 50 Hz Speed: 4.4 rpm Power: 0.30 kW Current: 1.10 A Shaft: Type 06 Limit switch: Precision gear limit switch END 20 for 580 shaft revolutions Features: Extremely quiet, self-locking double worm gear Maintenance-free and long-lasting Universal mounting: rear (standard) or optionally left-side (symmetrical) Wiring via 7-core cable The Lock EWA 12.2505 is a powerful gear motor designed for professional use in greenhouse shading systems. Its self-locking double worm gear ensures quiet and reliable movement of the screens. With flexible mounting options and an integrated precision limit switch, it offers versatile and user-friendly installation.

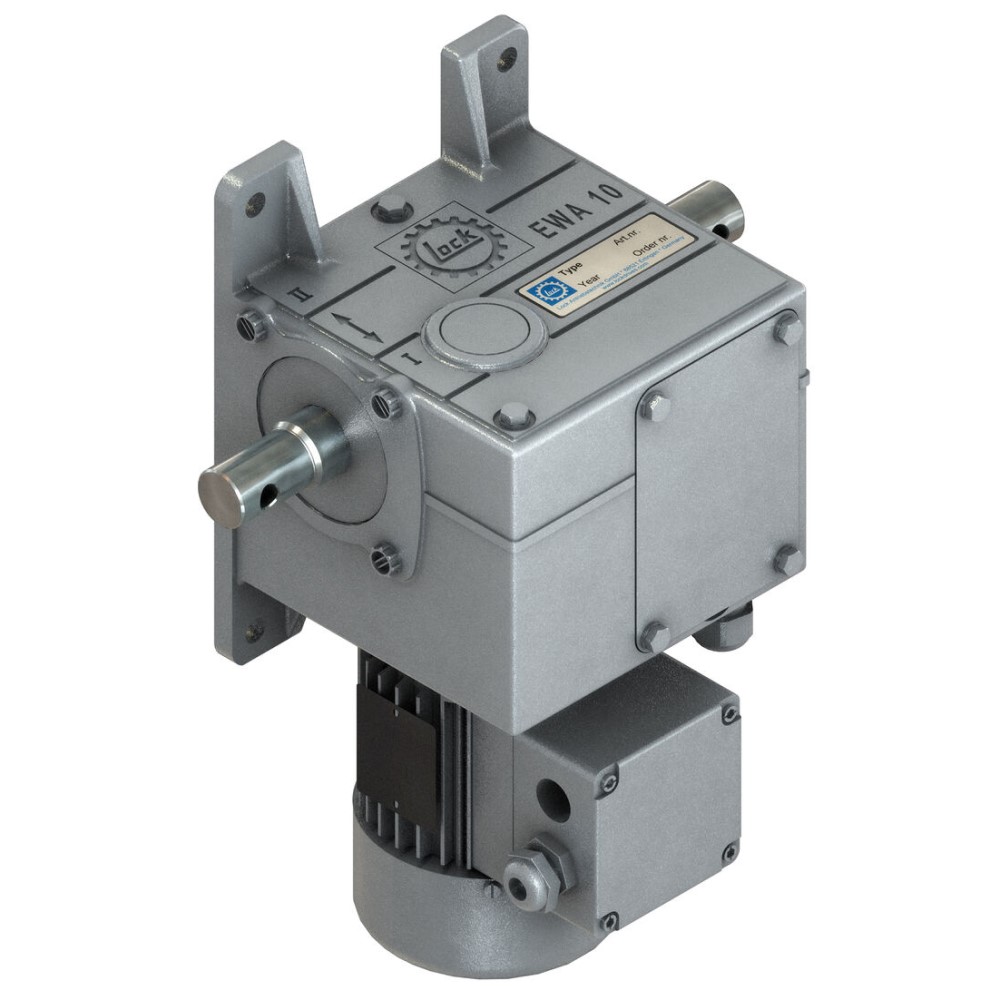

Application: Drive unit for horizontal shading and energy screen systems Torque: 50 Nm Voltage: 230 V, 1~, 50 Hz Speed: 5.4 rpm Power: 0.10 kW Current: 1.60 A Shaft: Type 06 Limit switch: Precision gear limit switch END 20 for 580 shaft revolutions Features: Extremely quiet, self-locking double worm gear Maintenance-free and long-lasting Universal mounting: rear (standard) or optionally left-side (symmetrical) Wiring via 7-core cable No separate motor protection switch required Delivered ready to connect with cable The Lock EWA 10.0505 is a compact and efficient gear motor for horizontal shading and energy screen systems. Its quiet, self-locking double worm gear ensures reliable operation, while the integrated limit switch and flexible mounting options make it ideal for greenhouse applications.

Application: Drive unit for horizontal shading systems in greenhouses Torque: 50 Nm Voltage: 400 V, 3~, 50 Hz Speed: 5.6 revolutions per minute Power: 0.11 kW Current: 0.45 A Shaft: Type 06 Limit switch: Precision gear limit switch END 20 for 580 shaft revolutions Features: Extremely quiet, self-locking double worm gear Maintenance-free and long-lasting Universal mounting: rear (standard) or optionally left-side (symmetrical) Wiring via 7-core cable The Lock EWA 10.0505 is a compact and efficient gear motor for horizontal shading systems. With 50 Nm torque and a quiet, self-locking double worm gear, it ensures precise and reliable screen movement. The integrated limit switch and flexible mounting options make it ideal for small to medium greenhouse installations.
